HTC LM339 Quad Voltage Comparator Manual
Summary
The LM339 Quarter Voltage Comparator is a robust integrated circuit featuring four independent comparators engineered for wide voltage range operation from single power supplies (2V to 36V DC). This manual provides comprehensive technical documentation detailing the performance characteristics, electrical specifications, and application usage. It is ideal for engineers requiring low-power, high-precision comparison circuits that can directly interface with TTL or CMOS logic, even when operating across varied voltage systems like A/D converters or clock generators.

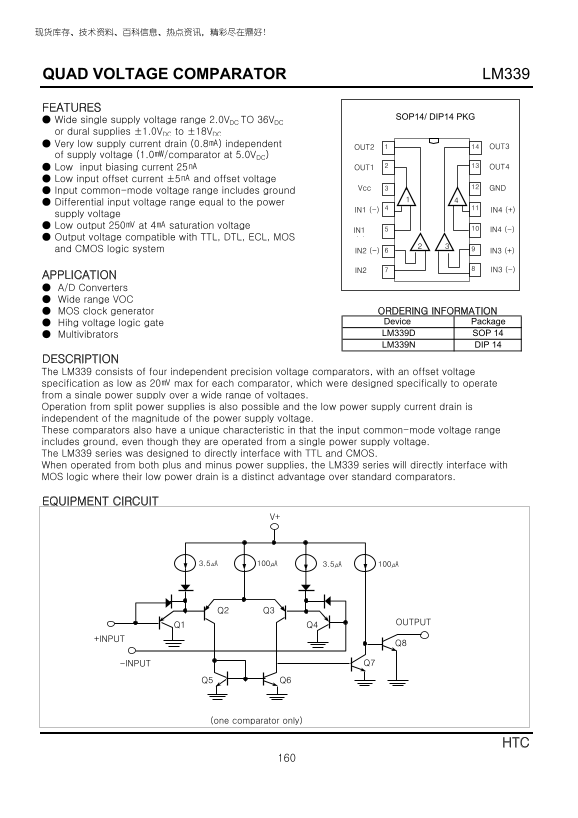

Page 1 Text Content
QUAD VOLTAGE COMPARATOR LM339
FEATURES
SOP14/ DIP14 PKG
● Wide single supply voltage range 2.0VDC TO 36VDC or dural supplies ±1.0VDC to ±18VDC ● Very low supply current drain (0.8㎃) independent
OUT3OUT2
of supply voltage (1.0㎽/comparator at 5.0VDC)
● Low input biasing current 25㎁ 2OUT1 OUT4
● Low input offset current ±5㎁ and offset voltage
3Vcc GND
● Input common-mode voltage range includes ground ● Differential input voltage range equal to the power
4IN1 (-)
IN4 (+)11
supply voltage ● Low output 250㎷ at 4㎃ saturation voltage
5IN1 IN4 (-)
● Output voltage compatible with TTL, DTL, ECL, MOS and CMOS logic system 6IN2 (-) IN3 (+)
7IN2 IN3 (-)
APPLICATION ● A/D Converters ● Wide range VOC ● MOS clock generator ORDERING INFORMATION
● Hihg voltage logic gate Device Package
● Multivibrators LM339D SOP 14
LM339N DIP 14
DESCRIPTION The LM339 consists of four independent precision voltage comparators, with an offset voltage specification as low as 20㎷ max for each comparator, which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though they are operated from a single power supply voltage. The LM339 series was designed to directly interface with TTL and CMOS. When operated from both plus and minus power supplies, the LM339 series will directly interface with MOS logic where their low power drain is a distinct advantage over standard comparators.
EQUIPMENT CIRCUIT
OUTPUT
+INPUT
-INPUT Q7
(one comparator only)
Page Summary Contents For HTC LM339 Quad Voltage Comparator Manual
Manual Details
| Brand | QUAD |
|---|---|
| Pages | 4 |
| File Size | 144.67 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What voltage ranges can the LM339 operate on?
It supports operation from a single power supply across a wide range of 2.0V to 36V DC, or using split supplies between ±1.0V and ±18V DC.
Does it work with different logic standards (TTL, CMOS)?
Yes, the LM339 is designed to directly interface with TTL and CMOS logic systems, and also functions well with MOS when run from both positive and negative power supplies.
Can I use ground as a common-mode reference voltage?
Yes, one of its unique characteristics is that the input common-mode voltage range includes ground, even when operating from a single power supply voltage.
