HTC LM2576 Data Sheet
Summary
The LM2576 is a highly efficient step-down switching regulator (Buck converter) designed for engineers needing reliable power management solutions. Available in fixed or adjustable versions (3.3V to 15V), this module minimizes external components while delivering high performance and robust protection features like thermal shutdown and cycle-by-cycle current limiting. This manual covers the complete technical specifications, operational guidelines, application schematics, and design best practices necessary for integrating the regulator into demanding electronic power supply applications.

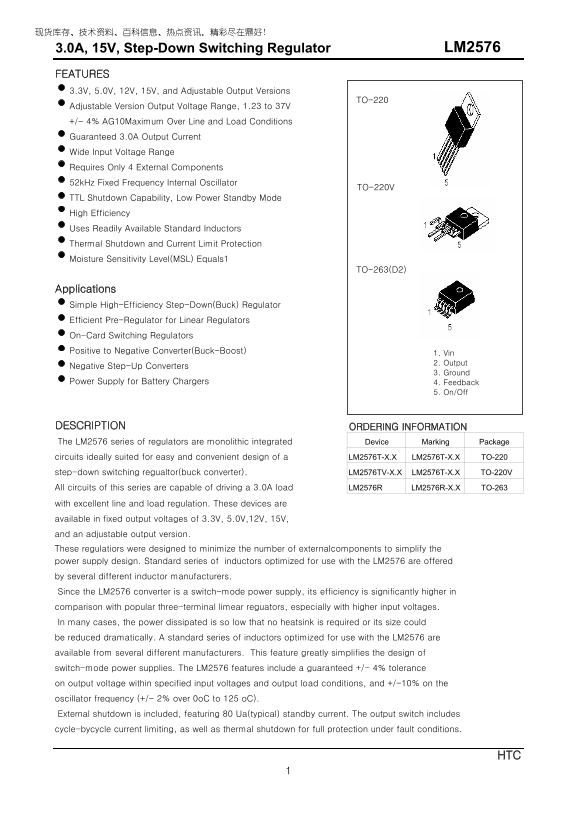

Page 1 Text Content
3.0A, 15V, Step-Down Switching Regulator LM2576
FEATURES 3.3V, 5.0V, 12V, 15V, and Adjustable Output Versions
TO-220
Adjustable Version Output Voltage Range, 1.23 to 37V +/- 4% AG10Maximum Over Line and Load Conditions Guaranteed 3.0A Output Current Wide Input Voltage Range Requires Only 4 External Components 52k Hz Fixed Frequency Internal Oscillator
TO-220V
TTL Shutdown Capability, Low Power Standby Mode High Efficiency Uses Readily Available Standard Inductors Thermal Shutdown and Current Limit Protection Moisture Sensitivity Level(MSL) Equals1
TO-263(D2)
Applications Simple High-Efficiency Step-Down(Buck) Regulator Efficient Pre-Regulator for Linear Regulators On-Card Switching Regulators Positive to Negative Converter(Buck-Boost)
1. Vin 2. Output
Negative Step-Up Converters
3. Ground
Power Supply for Battery Chargers 4. Feedback
5. On/Off
DESCRIPTION ORDERING INFORMATION The LM2576 series of regulators are monolithic integrated Device Marking Package
circuits ideally suited for easy and convenient design of a LM2576T-X.X LM2576T-X.X TO-220
step-down switching regualtor(buck converter). LM2576TV-X.X LM2576T-X.X TO-220V All circuits of this series are capable of driving a 3.0A load LM2576R LM2576R-X.X TO-263
with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5.0V,12V, 15V, and an adjustable output version. These regulatiors were designed to minimize the number of externalcomponents to simplify the power supply design. Standard series of inductors optimized for use with the LM2576 are offered by several different inductor manufacturers. Since the LM2576 converter is a switch-mode power supply, its efficiency is significantly higher in comparison with popular three-terminal limear reguators, especially with higher input voltages. In many cases, the power dissipated is so low that no heatsink is required or its size could be reduced dramatically. A standard series of inductors optimized for use with the LM2576 are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies. The LM2576 features include a guaranteed +/- 4% tolerance on output voltage within specified input voltages and output load conditions, and +/-10% on the oscillator frequency (+/- 2% over 0o C to 125 o C). External shutdown is included, featuring 80 Ua(typical) standby current. The output switch includes cycle-bycycle current limiting, as well as thermal shutdown for full protection under fault conditions.
Page Summary Contents For HTC LM2576 Data Sheet
Manual Details
| Brand | HTC |
|---|---|
| Pages | 9 |
| File Size | 764.42 KB |
| Published | May 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What output voltages are available for the LM2576 regulator?
It is available with fixed outputs of 3.3V, 5.0V, 12V, and 15V, as well as an adjustable version.
Does the LM2576 require a heatsink?
Due to its high efficiency, the power dissipation can be so low that no heatsink is required or its size could be reduced dramatically.
How is system protection handled when using this regulator?
The device includes cycle-by-cycle current limiting and thermal shutdown for full protection under fault conditions.
