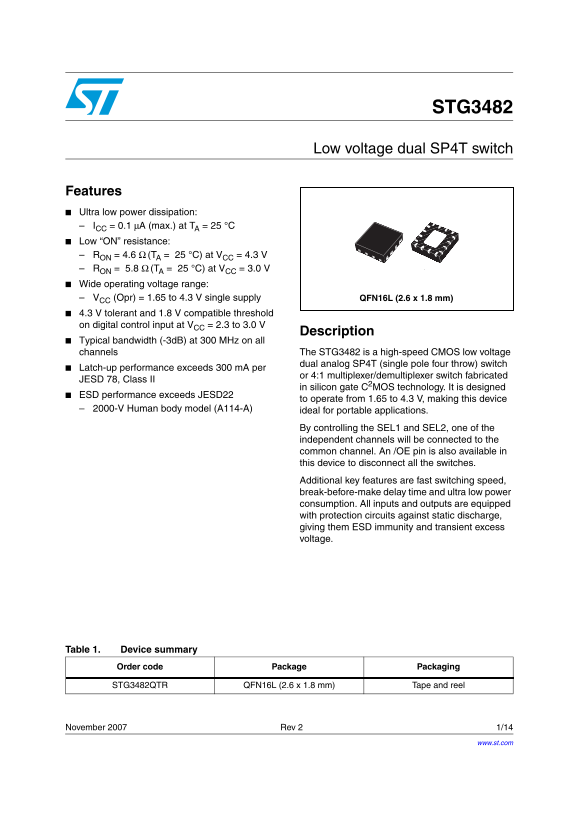

Page 1 Text Content

STG3482

Low voltage dual SP4T switch

Features Ultra low power dissipation: ICC 0.1 μA (max.) at TA °C Low “ON” resistance: RON 4.6 Ω (TA °C) at VCC 4.3 RON 5.8 Ω (TA = 25 °C) at VCC 3.0 Wide operating voltage range: VCC (Opr) = 1.65 to 4.3 V single supply QFN16L (2.6 x 1.8 mm) 4.3 V tolerant and 1.8 V compatible threshold on digital control input at VCC = 2.3 to 3.0

Description

Typical bandwidth (-3d B) at 300 MHz on all channels The STG3482 is a high-speed CMOS low voltage

dual analog SP4T (single pole four throw) switch

Latch-up performance exceeds 300 m A per

or 4:1 multiplexer/demultiplexer switch fabricated

JESD 78, Class II

in silicon gate C2MOS technology. It is designed

ESD performance exceeds JESD22

to operate from 1.65 to 4.3 V, making this device

2000-V Human body model (A114-A) ideal for portable applications.

By controlling the SEL1 and SEL2, one of the independent channels will be connected to the common channel. An /OE pin is also available in this device to disconnect all the switches. Additional key features are fast switching speed, break-before-make delay time and ultra low power consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage.

Table 1. Device summary

Order code Package Packaging

STG3482QTR QFN16L (2.6 x 1.8 mm) Tape and reel

November 2007 Rev 2 1/14

www.st.com

Page Summary Contents For ST STG3482 Low voltage dual SP4T switch Data Sheet manual

Page 1 STG3482 Low voltage dual SP4T switch Features Ultra low power dissipation: ICC 0.1 μA (max.) at TA °C Low “ON” resistance: RON 4.6 Ω (TA °C) at VCC 4.3 RON 5.8 Ω (TA = 25 °C) at VCC 3.0 Wide operating...
Page 2 Contents STG3482 Contents Pin settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1 Pin description . . . . . . . . . . . . . . . . . . . . . ....
Page 3 STG3482 Pin settings 1 Pin settings Figure 1. Pin connection (top through view) CCV GND Control 1SEL 2SEL CS00019 1.1 Pin description Table 2. Pin description Pin number Symbol Name and function 1S4 I...
Page 4 Device summary STG3482 2 Device summary Figure 2. Input equivalent circuit 1SEL 2SEL /OE S4 CS003001 Table 3. Truth table /OE 1SEL 2SEL Switch connection High-Z D1-1S1, D2-2S1 D1-1S2, D2-2S2 D1-1S3, D...
Page 5 STG3482 Maximum rating 3 Maximum rating Stressing the device above the rating listed in the “Absolute maximum ratings” table may cause permanent damage to the device. These are stress ratings only and...
Page 6 Electrical characteristics STG3482 4 Electrical characteristics Table 6. DC specifications Test conditions Value Symbol Parameter TA °C -40 to °C Unit Vcc Typ Max Min Max High level VIH input voltage ...
Page 7 STG3482 Electrical characteristics Table 6. DC specifications Test conditions Value Symbol Parameter TA °C -40 to °C Unit Vcc Typ Max Min Max OFF state leakage IOFF 4.3 VS = 0.3 or 4 ±20 ±100 n A curr...
Page 8 Electrical characteristics STG3482 Table 7. AC electrical characteristics (CL = 35 p F, RL = 50 Ω, tr = tf ≤5 ns) Test conditions Value Symbol Parameter TA = 25 °C -40 to 85 °C Unit Vcc Min Typ Max Mi...
Page 9 STG3482 Electrical characteristics Table 8. Analog switch characteristics (CL = 5p F, RL = 50Ω, TA = 25°C) Test conditions Value Symbol Parameter TA = 25 °C -40 to 85 °C Unit Vcc Min Typ Max Min Max V...
Page 10 Package mechanical data STG3482 5 Package mechanical data In order to meet environmental requirements, ST offers these devices in ECOPACK® packages. These packages have a Lead-free second level interc...
Page 11 STG3482 Package mechanical data Table 9. QFN16L (2.6 1.8 mm) mechanical data Millimeters Symbol Typ Min Max 1. VFQFPN - standard for thermally enhanced vey fine pitch quad flat package no leads. 2. Th...
Page 12 Package mechanical data STG3482 Figure 4. QFN16L (2.6 x 1.8 mm) tape and reel
Page 13 STG3482 Revision history 6 Revision history Table 10. Document revision history Date Revision Changes 21-Nov-2006 Initial release. Updated latch-up performance value in Features section n on page 20-N...
Page 14 STG3482 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corr...
