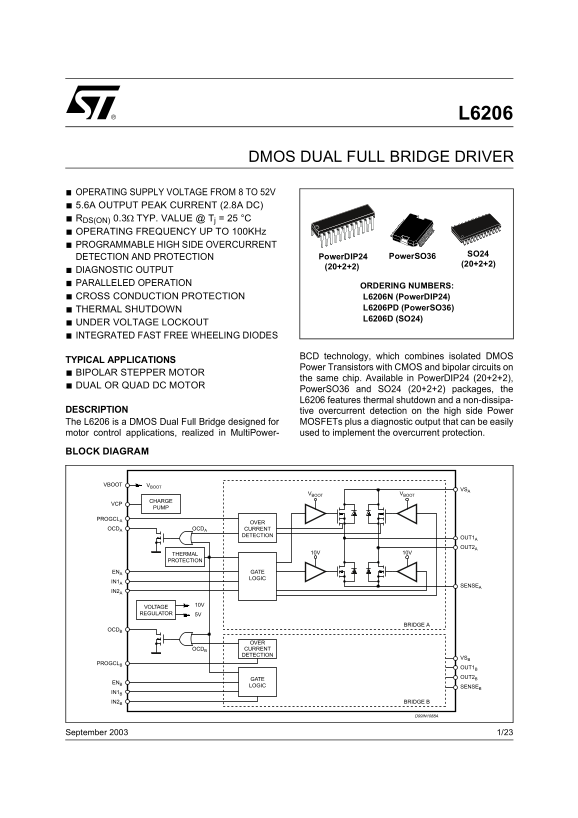

ST L6206 DMOS DUAL FULL BRIDGE DRIVER Data Sheet User Manual - Page 1

›

Page 1 Text Content

DMOS DUAL FULL BRIDGE DRIVER

OPERATING SUPPLY VOLTAGE FROM 8 TO 52V 5.6A OUTPUT PEAK CURRENT (2.8A DC) RDS(ON) 0.3Ω TYP. VALUE @ Tj = 25 °C OPERATING FREQUENCY UP TO 100KHz PROGRAMMABLE HIGH SIDE OVERCURRENT

DETECTION AND PROTECTION Power DIP24 Power SO36

DIAGNOSTIC OUTPUT PARALLELED OPERATION

ORDERING NUMBERS:

CROSS CONDUCTION PROTECTION L6206N (Power DIP24)

THERMAL SHUTDOWN L6206PD (Power SO36) L6206D (SO24)

UNDER VOLTAGE LOCKOUT INTEGRATED FAST FREE WHEELING DIODES

BCD technology, which combines isolated DMOS

TYPICAL APPLICATIONS

Power Transistors with CMOS and bipolar circuits on

BIPOLAR STEPPER MOTOR

the same chip. Available in Power DIP24 (20+2+2),

DUAL OR QUAD DC MOTOR

Power SO36 and SO24 (20+2+2) packages, the L6206 features thermal shutdown and a non-dissipa-

DESCRIPTION tive overcurrent detection on the high side Power

The L6206 is a DMOS Dual Full Bridge designed for MOSFETs plus a diagnostic output that can be easily motor control applications, realized in Multi Power- used to implement the overcurrent protection.

BLOCK DIAGRAM

VBOOT VBOOT

CHARGE

PROGCLA

OCDA OCDA CURRENT

DETECTION

OUT1A OUT2A

THERMAL 10V 10V

PROTECTION

ENA GATE

LOGIC

SENSEA

VOLTAGE REGULATOR 5V

BRIDGE A

OVER OCDB CURRENT DETECTION

PROGCLB

OUT1B OUT2B

LOGIC SENSEB

IN1B IN2B BRIDGE B

D99IN1088A

September 2003 1/23
