ST FLI30436 Dual-Channel LCD TV Controller Data Sheet
Summary
This integrated video controller IC is designed for manufacturers building advanced LCD televisions. It delivers exceptional picture quality through True 10-bit processing and dual-channel Picture-in-Picture (PIP) functionality up to WUXGA resolution. The technical manual details comprehensive features including flexible analog/digital capture, built-in 3D decoding using IntelliComb technology, VBI signal management for global standards, and a fully featured microprocessor. It provides developers with a single-chip solution that dramatically simplifies complex TV display integration.

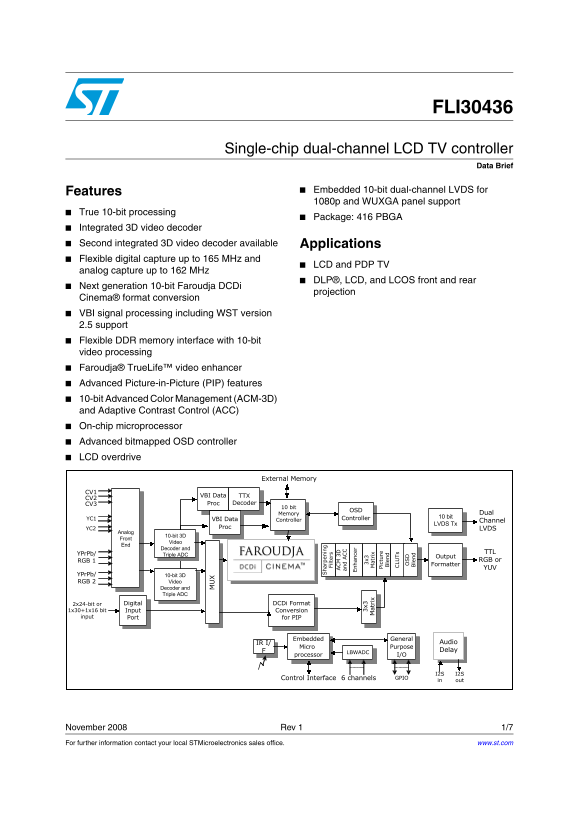

Page 1 Text Content
FLI30436
Single-chip dual-channel LCD TV controller
Data Brief
Features Embedded 10-bit dual-channel LVDS for 1080p and WUXGA panel support
True 10-bit processing
Package: 416 PBGA
Integrated 3D video decoder Second integrated 3D video decoder available Applications Flexible digital capture up to 165 MHz and
LCD and PDP TV
analog capture up to 162 MHz
DLP®, LCD, and LCOS front and rear
Next generation 10-bit Faroudja DCDi
projection
Cinema® format conversion VBI signal processing including WST version
2.5 support ar en in Fi lt er
Flexible DDR memory interface with 10-bit
video processing an ce
Faroudja® True Life™ video enhancer
at ri at ri
Pi ct re
Advanced Picture-in-Picture (PIP) features
10-bit Advanced Color Management (ACM-3D) and Adaptive Contrast Control (ACC) le
On-chip microprocessor Advanced bitmapped OSD controller LCD overdrive
External Memory
VBI Data TTX
CV3 Proc Decoder
10 bit
Memory Dual
YC1 Controller 10 bit
VBI Data Controller Channel
LVDS Tx
YC2 Proc LVDS
Analog
10-bit 3D Video
Decoder and
YPr Pb/ TTL
Triple ADC Output
RGB 1 RGB or
Formatter
YPr Pb/ 10-bit 3D RGB 2 Video
Decoder and Triple ADC
2x24-bit or Digital DCDi Format
1x30+1x16 bit Input Conversion input Port for PIP
Embedded General
IR I/ Audio
Micro Purpose
Delay
LBWADC
processor I/O
Control Interface 6 channels GPIO
in out
November 2008 Rev 1 1/7 For further information contact your local STMicroelectronics sales office. www.st.com
Page Summary Contents For ST FLI30436 Dual-Channel LCD TV Controller Data Sheet
Manual Details
| Brand | Dual |
|---|---|
| Pages | 7 |
| File Size | 118.46 KB |
| Published | June 05, 2026 |
