This integrated quad switch driver provides a highly efficient solution with built-in H-Bridge functionality for demanding DC motor control applications. Featuring ultra-low on-resistance, the device reduces power dissipation while offering sophisticated protection against overtemperature, short circuits, and open loads. This technical manual serves as a comprehensive resource detailing pin definitions, block diagrams, application circuits, and functional specifications. It is intended for electrical engineers and hardware designers working in advanced automotive and industrial control systems who require reliable, high-performance switching components.

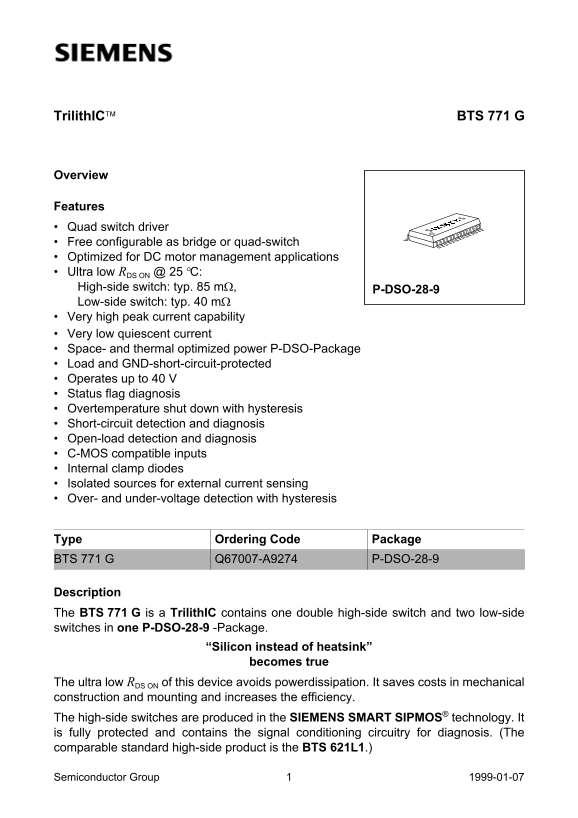

Page 1 Text Content
Trilith IC BTS
Overview
Features Quad switch driver Free configurable as bridge or quad-switch Optimized for DC motor management applications
Ultra low RDS °C: ON @
High-side switch: typ. 85 mΩ, P-DSO-28-9 Low-side switch: typ. 40 mΩ Very high peak current capability Very low quiescent current Space- and thermal optimized power P-DSO-Package Load and GND-short-circuit-protected Operates up to 40 V Status flag diagnosis Overtemperature shut down with hysteresis Short-circuit detection and diagnosis Open-load detection and diagnosis C-MOS compatible inputs Internal clamp diodes Isolated sources for external current sensing Over- and under-voltage detection with hysteresis
Type Ordering Code Package BTS Q67007-A9274 P-DSO-28-9
Description The BTS G is a Trilith IC contains one double high-side switch and two low-side switches in one P-DSO-28-9 -Package.
“Silicon instead of heatsink” becomes true
The ultra low RDS
ON of this device avoids powerdissipation. It saves costs in mechanical
construction and mounting and increases the efficiency. The high-side switches are produced in the SIEMENS SMART SIPMOS® technology. It is fully protected and contains the signal conditioning circuitry for diagnosis. (The comparable standard high-side product is the BTS 621L1.)
Semiconductor Group 1999-01-07
Page Summary Contents For SIEMENS BTS 771 G User Guide and Manual
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 17 |
| File Size | 110.70 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What applications is the BTS 771 G suitable for?
It is suited for a wide range of automotive and industrial applications, including H-Bridge configurations.
How do I reset the device using the watchdog timer?
Apply a 12V signal to inputs QDO1 and QDO2 on the Watchdog Reset circuit.
What safety features does the BTS 771 G offer?
It provides short-circuit protection, overtemperature shutdown with hysteresis, open-load detection, and overload protection for high-side switches.
Is it possible to add external current sensing?
Yes, the device includes isolated sources for external current sensing by allowing the addition of current sense resistors.
