Siemens BTS 774 G User's Manual (1)(1) Operating Instructions Book (OIB) Siemens BTS 774 G (1) Quick Start Guide (Optional)

Summary

The BTS 774 G is a high-efficiency TrilithIC power switch driver designed for DC motor management in industrial and automotive applications. This integrated circuit features ultra-low resistance, robust protection against short circuits, overloads, and overtemperatures, ensuring maximum reliability. The manual provides comprehensive technical documentation, including detailed pin configurations, block diagrams, application circuit schematics, and specifications needed by engineers to seamlessly implement this advanced power management solution into demanding motor control systems.

📄 Preview PAGE OF 17

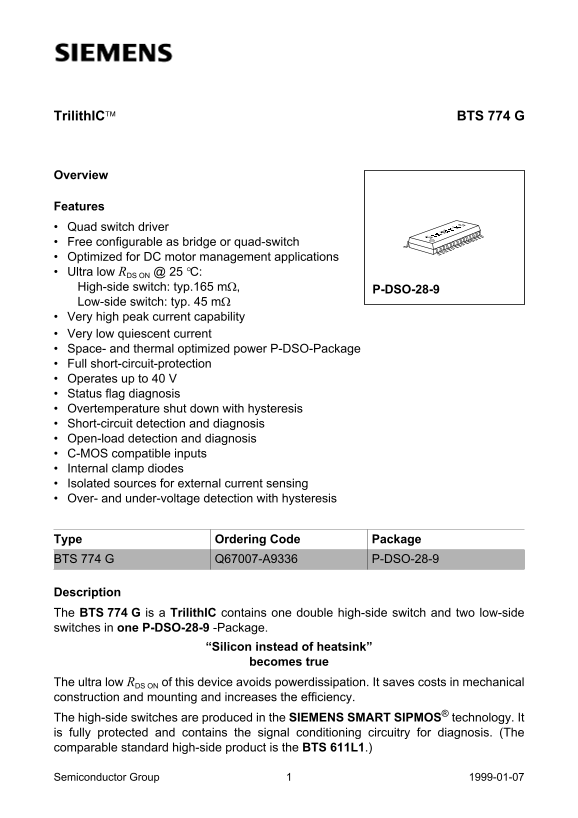

Page 1 Text Content

Trilith IC BTS

Overview

Features Quad switch driver Free configurable as bridge or quad-switch Optimized for DC motor management applications

Ultra low RDS °C: ON @

High-side switch: typ.165 mΩ, P-DSO-28-9 Low-side switch: typ. 45 mΩ Very high peak current capability Very low quiescent current Space- and thermal optimized power P-DSO-Package Full short-circuit-protection Operates up to 40 V Status flag diagnosis Overtemperature shut down with hysteresis Short-circuit detection and diagnosis Open-load detection and diagnosis C-MOS compatible inputs Internal clamp diodes Isolated sources for external current sensing Over- and under-voltage detection with hysteresis

Type Ordering Code Package BTS Q67007-A9336 P-DSO-28-9

Description The BTS G is a Trilith IC contains one double high-side switch and two low-side switches in one P-DSO-28-9 -Package.

“Silicon instead of heatsink” becomes true

The ultra low RDS

ON of this device avoids powerdissipation. It saves costs in mechanical

construction and mounting and increases the efficiency. The high-side switches are produced in the SIEMENS SMART SIPMOS® technology. It is fully protected and contains the signal conditioning circuitry for diagnosis. (The comparable standard high-side product is the BTS 611L1.)

Semiconductor Group 1999-01-07

Page Summary Contents For Siemens BTS 774 G User's Manual (1)(1) Operating Instructions Book (OIB) Siemens BTS 774 G (1) Quick Start Guide (Optional)

Page 1 Trilith IC BTS Overview Features Quad switch driver Free configurable as bridge or quad-switch Optimized for DC motor management applications Ultra low RDS °C: ON @ High-side switch: typ.165 mΩ, P-DS...
Page 2 For minimized RDS ON the two low-side switches are N channel vertical power FETs in the SIEMENS SMART SIPMOS® technology. Fully protected by embedded protection functions. (The comparable standard pro...
Page 3 DL1 DL1 GL1 SL1 DL1 SL1 LS-Lead Frame 1 N.C. DL1 DHVS DHVS GND SH1 GH1 SH1 HS-Lead Frame ST SH2 GH2 SH2 DHVS DHVS N.C. DL2 DL2 LS-Lead Frame 2 SL2 GL2 SL2 DL2 DL2 AEP02071 Figure 1 Pin Configuration (...
Page 4 Pin Definitions and Functions Pin No. Symbol Function 1, 3, 25, 28 DL1 Drain of low-side switch1 Leadframe 1 GL1 Gate of low-side switch1 N.C. not connected 5, 10, 19, 24 DHVS Drain of high-side switc...
Page 5 Diagnosis Biasing and Protection Driver GH1 IN OUT LL00 HL10 O1 O2R 2120, SH2 GH2 HH11 1815,14,12, DL2 22, SH1 Protection DL1 Driver Protection Driver SL1 SL2 AEB02676 Figure 2 Block Diagram Semicondu...
Page 6 Circuit Description Input Circuit The control inputs GH1,2 consist of TTL/CMOS compatible Schmitt-Triggers with hysteresis. Buffer amplifiers are driven by these stages and convert the logic signal in...
Page 7 Overvoltage-Lockout (OVLO) When VS reaches the switch-off voltage VOVOFF the High-Side output transistors are switched off with a hysteresis. The IC becomes active if the supply voltage VS drops below...
Page 8 Truthtable and Diagnosis (valid only for the High-Side-Switches) Flag GH1 GH2 SH1 SH2 ST Remarks Inputs Outputs stand-by mode Normal operation; switch2 active identical with functional truth table swi...
Page 9 Electrical Characteristics Absolute Maximum Ratings – 40 °C < Tj < 150 °C Parameter Symbol Limit Values Unit Remarks min. max. High-Side-Switches (Pins DHVS, GH1,2 and SH1,2) Supply voltage VS –...
Page 10 Operating Range Parameter Symbol Limit Values Unit Remarks min. max. Supply voltage VS VUVOFF After VS rising above VUVON Input voltages VGH – 0.3 Input voltages VGL – 0.3 Output current IST m A HS-ju...
Page 11 Electrical Characteristics ISH1 = ISH2 = ISL1 = ISL2 = 0 A; – 40 °C < Tj < 150 °C; 8 V > VS > 18 V unless otherwise specified Parameter Symbol Limit Values Unit Test Condition min. typ. ma...
Page 12 Electrical Characteristics (cont’d) ISH1 = ISH2 = ISL1 = ISL2 = 0 A; – 40 °C < Tj < 150 °C; 8 V > VS > 18 V unless otherwise specified Parameter Symbol Limit Values Unit Test Condition min...
Page 13 Electrical Characteristics (cont’d) ISH1 = ISH2 = ISL1 = ISL2 = 0 A; – 40 °C < Tj < 150 °C; 8 V > VS > 18 V unless otherwise specified Parameter Symbol Limit Values Unit Test Condition min...
Page 14 Electrical Characteristics (cont’d) ISH1 = ISH2 = ISL1 = ISL2 = 0 A; – 40 °C < Tj < 150 °C; 8 V > VS > 18 V unless otherwise specified Parameter Symbol Limit Values Unit Test Condition min...
Page 15 SΙ = 12 V SV CS CL FH1, 470n F F100 ST 5, 10, 19, 24 Diagnosis Biasing and Protection VDSH1 DSH2V FL1V--VFL2 Driver IN OUT STV VSTL LL00 HL10 O2R SH2Ι STZV SH2 VGH1 HH11 12, 14, 15, 18 DL2 DL2Ι VUVON ...
Page 16 Watchdog Reset TLE 4278G DO1 1N4001 RQ CQ CD CS WD DHVS ST 5, 10, 19, 24 Diagnosis Biasing and Protection Driver IN OUT HL10 O2R 12, 14, 15, 18 DL2 22, 23 SH1 1, 3, DL1 Protection GL1 Gate Driver Prot...
Page 17 Package Outlines P-DSO-28-9 (Plastic Dual Small Outline Package) 2. ax Index Marking 1) Does not include plastic or metal protrusions of 0.15 max rer side 8˚ ax 2) Does not include dambar protrusion o...
