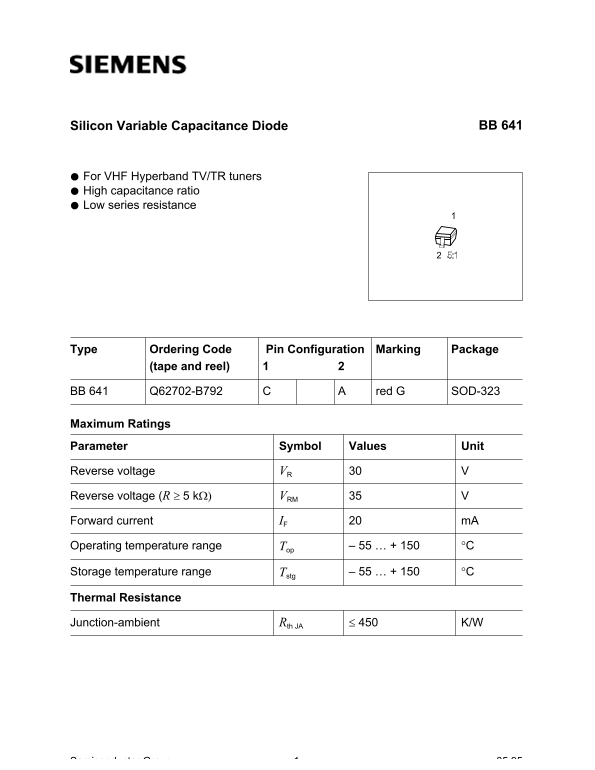

Silicon Variable Capacitance Diode BB 641
For VHF Hyperband TV/TR tuners High capacitance ratio Low series resistance
Type Ordering Code Pin Configuration Marking Package
(tape and reel)
BB Q62702-B792 red SOD-323
Maximum Ratings Parameter Symbol Values Unit
Reverse voltage VR
Reverse voltage (R kΩ) VRM
Forward current IF m A
Operating temperature range – 55 °C
Storage temperature range Tstg – 55 + 150 °C
Thermal Resistance
Junction-ambient Rth JA K/W
