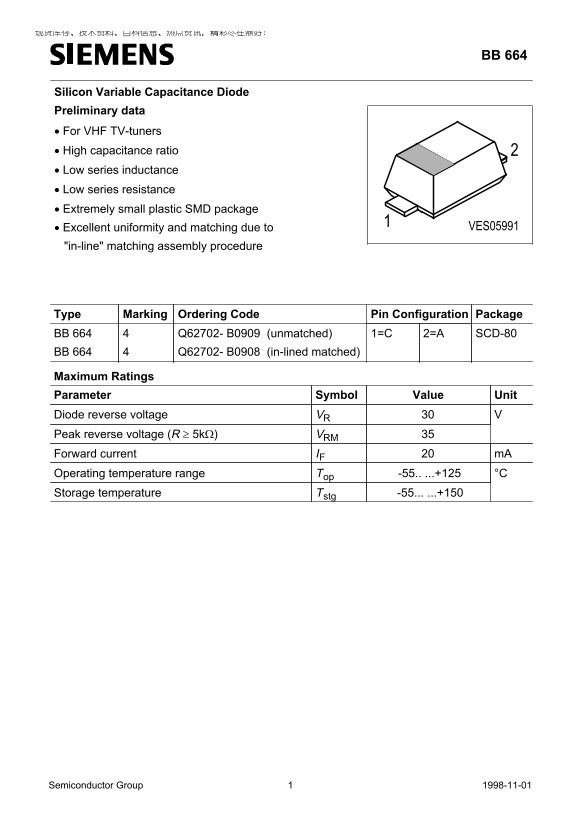

BB 664
Silicon Variable Capacitance Diode Preliminary data • For VHF TV-tuners • High capacitance ratio • Low series inductance • Low series resistance • Extremely small plastic SMD package
• Excellent uniformity and matching due to VES05991
"in-line" matching assembly procedure
Type Marking Ordering Code Package Pin Configuration
Q62702- B0909 (unmatched) 1=C 2=A SCD-80BB 664
BB 664 Q62702- B0908 (in-lined matched)
Maximum Ratings Parameter Symbol Unit Value Diode reverse voltage VR Peak reverse voltage (R ≥ 5kΩ) VRM Forward current IF m A Operating temperature range -55.. ...+125 °C Storage temperature Tstg -55... ...+150
