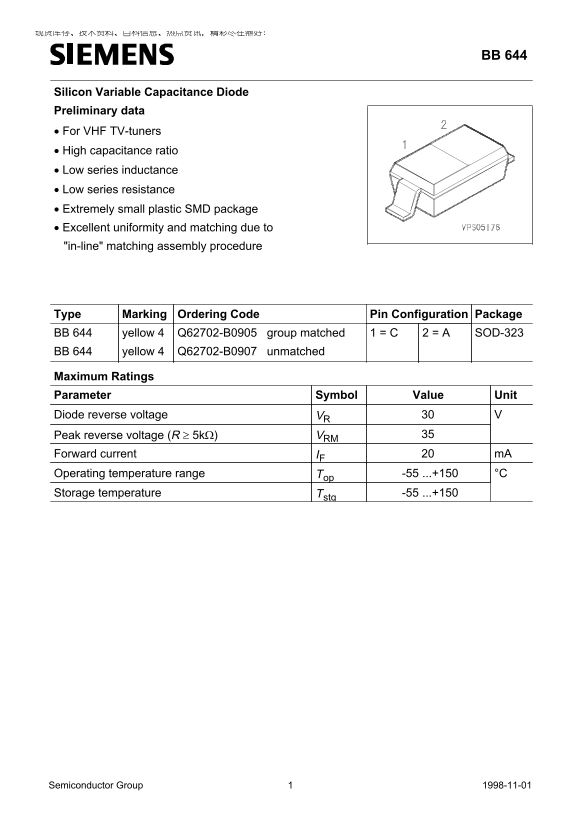

BB 644
Silicon Variable Capacitance Diode Preliminary data • For VHF TV-tuners • High capacitance ratio • Low series inductance • Low series resistance • Extremely small plastic SMD package • Excellent uniformity and matching due to "in-line" matching assembly procedure
Type Marking Ordering Code Pin Configuration Package BB 644 yellow 4 Q62702-B0905 group matched 1 = C 2 = A SOD-323 BB 644 yellow 4 Q62702-B0907 unmatched
Maximum Ratings Parameter Value Symbol Unit Diode reverse voltage V30VR
Peak reverse voltage (R ≥ 5kΩ) 35VRM IF 20Forward current m A
Operating temperature range -55 ...+150 °C Storage temperature Tstg -55 ...+150
Semiconductor Group Jul-09-19981 Semiconductor Group 1998-11-01
