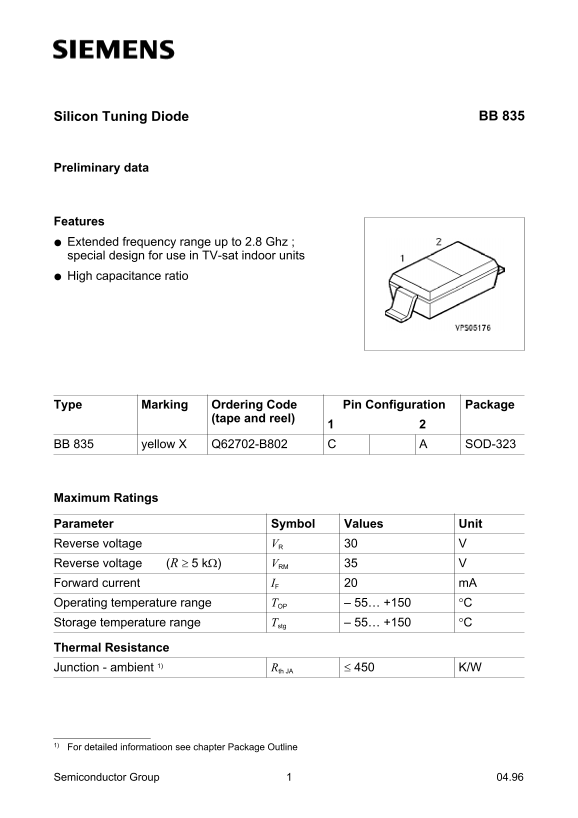

Silicon Tuning Diode BB 835
Preliminary data
Features Extended frequency range up to 2.8 Ghz ; special design for use in TV-sat indoor units High capacitance ratio
Type Marking Ordering Code Pin Configuration Package
(tape and reel)
BB 835 yellow X Q62702-B802 SOD-323
Maximum Ratings
Parameter Symbol Values Unit
Reverse voltage VR Reverse voltage (R kΩ) VRM Forward current IF m A
Operating temperature range – 55… +150 °C
Storage temperature range Tstg – 55… +150 °C
Thermal Resistance
Junction - ambient Rth JA K/W
1) For detailed informatioon see chapter Package Outline
Semiconductor Group 04.96
