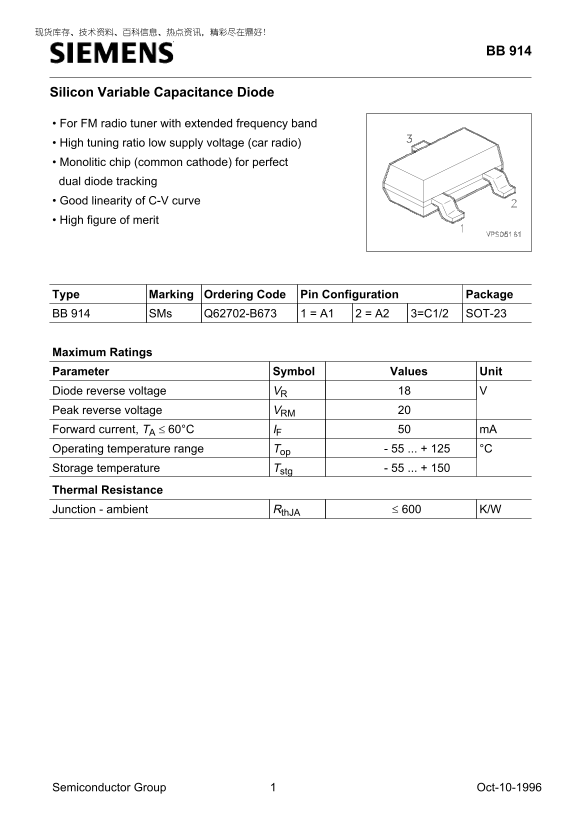

Siemens BB 914 Silicon Variable Capacitance Diode Data Sheet
Summary
This variable capacitance diode is designed for high-precision electronic tuning applications, making it ideal for FM radio tuners and car stereo systems. The comprehensive datasheet provides detailed electrical characteristics, including specific measurements for capacitance ratio, series resistance, and operating parameters across varying voltages and temperatures. This manual assists engineers and technicians in selecting the optimal component for circuits requiring excellent linearity and stable performance.
Page 1 Text Content
BB 914
Silicon Variable Capacitance Diode
• For FM radio tuner with extended frequency band • High tuning ratio low supply voltage (car radio) • Monolitic chip (common cathode) for perfect dual diode tracking • Good linearity of C-V curve • High figure of merit
Type Marking Ordering Code Pin Configuration Package BB 914 SMs Q62702-B673 1 = A1 2 = A2 3=C1/2 SOT-23
Maximum Ratings Parameter Symbol Values Unit Diode reverse voltage VR Peak reverse voltage VRM Forward current, TA ≤ 60°C IF m A Operating temperature range - 55 ... + 125 °C Storage temperature Tstg - 55 ... + 150 Thermal Resistance
Junction - ambient Rth JA ≤ 600 K/W
