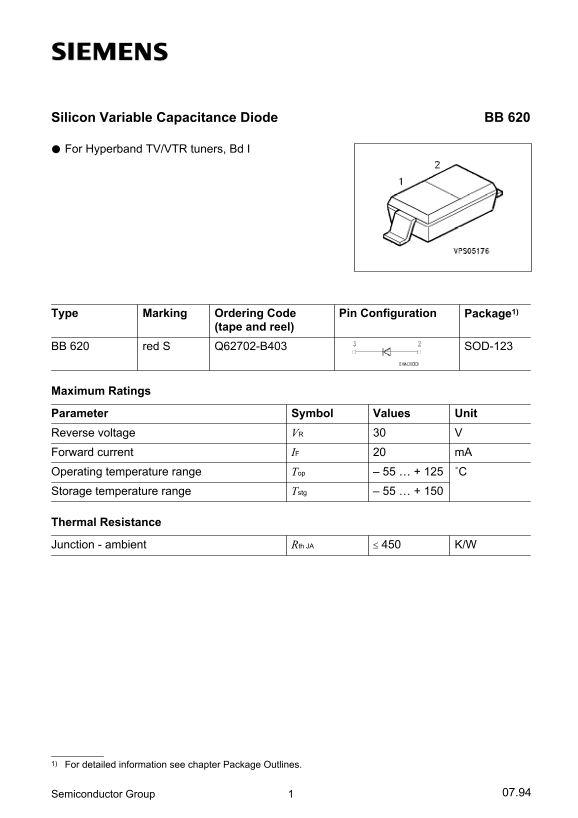

BB 620
Silicon Variable Capacitance Diode BB 620
For Hyperband TV/VTR tuners, Bd I
Type Marking Ordering Code Package1)Pin Configuration
(tape and reel)
BB 620 Q62702-B403red S SOD-123
Maximum Ratings Parameter Symbol Values Unit Reverse voltage VR Forward current IF m A
Operating temperature range – 55 … + 125 ˚C Storage temperature range Tstg – 55 … + 150
Thermal Resistance
Junction - ambient Rth JA ≤ 450 K/W
1) For detailed information see chapter Package Outlines.
Semiconductor Group 07.94
