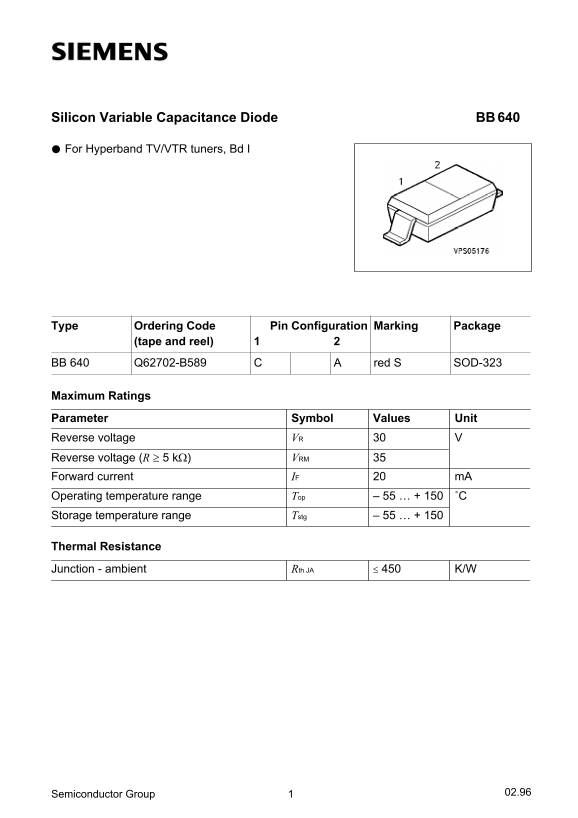

BB 640
Silicon Variable Capacitance Diode BB 640
For Hyperband TV/VTR tuners, Bd I
Type Ordering Code Pin Configuration Marking Package
(tape and reel)
BB 640 Q62702-B589 red S SOD-323
Maximum Ratings Parameter Symbol Values Unit Reverse voltage VR
5 kΩ) VRMReverse voltage (R
Forward current IF m A
Operating temperature range – 55 … + 150 ˚C Storage temperature range Tstg – 55 … + 150
Thermal Resistance
Junction - ambient Rth JA ≤ 450 K/W
Semiconductor Group 02.96
