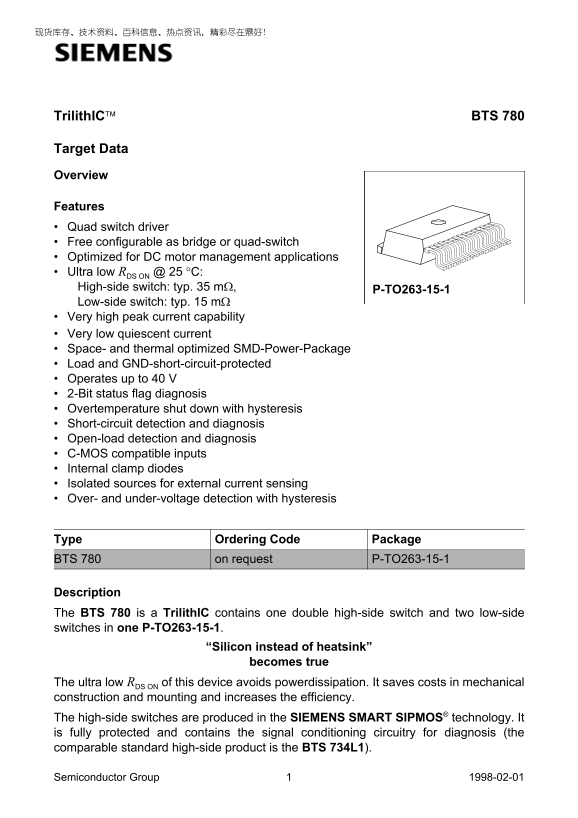

Trilith IC BTS 780
Target Data
Overview
Features Quad switch driver Free configurable as bridge or quad-switch Optimized for DC motor management applications
Ultra low RDS °C:
High-side switch: typ. 35 mΩ, P-TO263-15-1 Low-side switch: typ. 15 mΩ Very high peak current capability Very low quiescent current Space- and thermal optimized SMD-Power-Package Load and GND-short-circuit-protected Operates up to 40 V 2-Bit status flag diagnosis Overtemperature shut down with hysteresis Short-circuit detection and diagnosis Open-load detection and diagnosis C-MOS compatible inputs Internal clamp diodes Isolated sources for external current sensing Over- and under-voltage detection with hysteresis
Type Ordering Code Package BTS 780 on request P-TO263-15-1
Description The BTS 780 is a Trilith IC contains one double high-side switch and two low-side switches in one P-TO263-15-1.
“Silicon instead of heatsink” becomes true
The ultra low RDS
ON of this device avoids powerdissipation. It saves costs in mechanical
construction and mounting and increases the efficiency. The high-side switches are produced in the SIEMENS SMART SIPMOS® technology. It is fully protected and contains the signal conditioning circuitry for diagnosis (the comparable standard high-side product is the BTS 734L1).
