Siemens BFQ 81 Data Sheet
Summary
This high-performance NPN Silicon RF Transistor is engineered for mission-critical telecommunications applications, excelling in low-noise amplifiers (LNA) and broadband analog/digital circuitry up to 2GHz. This comprehensive technical manual provides detailed operational specifications including maximum ratings, AC/DC characteristics across varying frequencies, power gain details, and ready-to-use SPICE models. It is essential for electrical engineers and circuit designers developing complex high-frequency electronic systems requiring reliable signal amplification and robust performance in demanding environments.

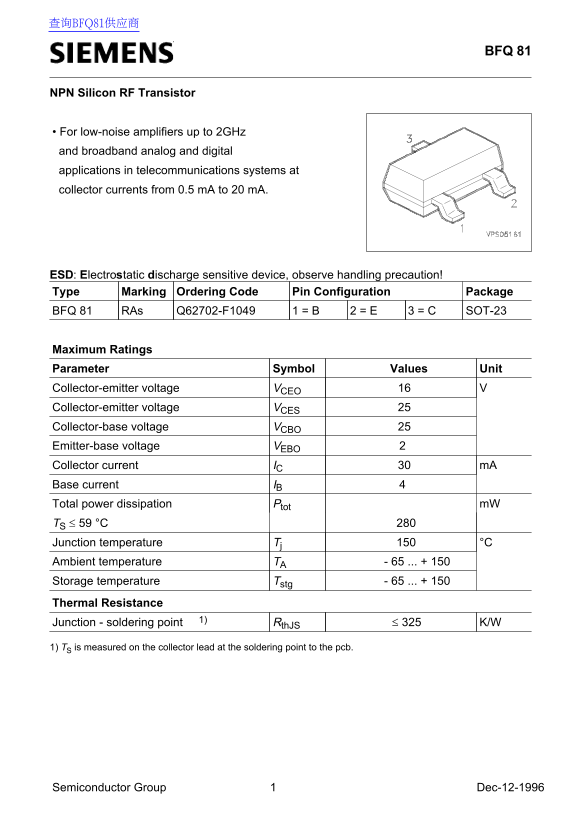

Page 1 Text Content
查询BFQ81供应商
BFQ 81
NPN Silicon RF Transistor
• For low-noise amplifiers up to 2GHz and broadband analog and digital applications in telecommunications systems at collector currents from 0.5 m A to 20 m A.
ESD: Electrostatic discharge sensitive device, observe handling precaution! Type Marking Ordering Code Pin Configuration Package BFQ 81 RAs Q62702-F1049 1 = B 2 = E 3 = C SOT-23
Maximum Ratings Parameter Symbol Values Unit Collector-emitter voltage VCEO Collector-emitter voltage VCES Collector-base voltage VCBO Emitter-base voltage VEBO Collector current IC m A Base current IB Total power dissipation Ptot m W TS ≤ 59 °C Junction temperature Tj °C Ambient temperature TA - 65 ... + 150 Storage temperature Tstg - 65 ... + 150 Thermal Resistance
Junction - soldering point 1) Rth JS ≤ 325 K/W
1) TS is measured on the collector lead at the soldering point to the pcb.
Semiconductor Group Dec-12-1996
