Siemens BFQ 29P Data Sheet

Summary

The BFQ29P is a high-performance NPN Silicon RF Transistor designed for building low-noise IF and broadband amplifiers up to 1 GHz. This manual provides comprehensive technical specifications, detailing its performance characteristics for collector currents ranging from 1 mA to 20 mA. Engineers can utilize this resource to select the optimal operating conditions by reviewing critical data like maximum ratings, transition frequency ($f_T$), Noise Figure (NF), and detailed S-parameters across various frequencies.

📄 Preview PAGE OF 10

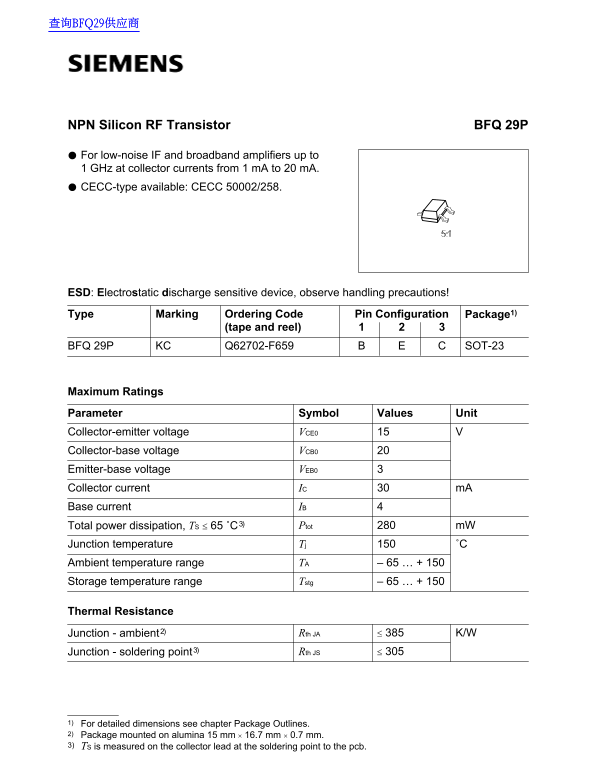

Page 1 Text Content

查询BFQ29供应商

NPN Silicon RF Transistor BFQ 29P

For low-noise IF and broadband amplifiers up to GHz at collector currents from 1 m A to 20 m A. CECC-type available: CECC 50002/258.

ESD: Electrostatic discharge sensitive device, observe handling precautions!

Type Marking Ordering Code Package1)Pin Configuration

(tape and reel)

BFQ 29P Q62702-F659KC SOT-23

Maximum Ratings

Parameter Symbol Values Unit Collector-emitter voltage VCE0 Collector-base voltage VCB0 Emitter-base voltage VEB0

Collector current IC m A

Base current IB

Total power dissipation, TS ˚C3) Ptot m W

Junction temperature Tj ˚C

Ambient temperature range TA – 65 … + 150

Storage temperature range Tstg – 65 … + 150

Thermal Resistance

Junction - ambient2) Rth JA ≤ 385 K/W Junction - soldering point3) Rth JS ≤ 305

1) For detailed dimensions see chapter Package Outlines. 2) Package mounted on alumina 15 mm 16.7 mm 0.7 mm. 3) TS is measured on the collector lead at the soldering point to the pcb.

Page Summary Contents For Siemens BFQ 29P Data Sheet

Page 1 查询BFQ29供应商 NPN Silicon RF Transistor BFQ 29P For low-noise IF and broadband amplifiers up to GHz at collector currents from 1 m A to 20 m A. CECC-type available: CECC 50002/258. ESD: Electrostatic dis...
Page 2 BFQ 29P Electrical Characteristics at TA = 25 ˚C, unless otherwise specified. Symbol Unit Values Parameter min. typ. max. DC Characteristics V(BR)CE0 VCollector-emitter breakdown voltage IC = 1 m A, I...
Page 3 BFQ 29P Electrical Characteristics at TA = 25 ˚C, unless otherwise specified. Symbol Unit Values Parameter min. typ. max. AC Characteristics f T GHz Transition frequency IC = 3 m A, VCE = 6 V, f = 200...
Page 4 BFQ 29P Total power dissipation Ptot = f (TA*; TS) Transition frequency f T = f (IC) *Package mounted on alumina VCE = 6 V, f = 200 MHz Collector-base capacitance Ccb = f (VCB) VBE = vbe = 0, f = 1 MH...
Page 5 BFQ 29P Common Emitter Noise Parameters Fmin Gp(Fmin) Γopt RN F50 Ω Gp(F50Ω) GHz d B d B MAG ANG d B d B IC = 3 m A, VCE = 6 V, Z0 = 50 0.01 0.85 (ZS = 130 Ω) 1.2 IC = 5 m A, VCE = 6 V, Z0 = 50 0.01 0...
Page 6 BFQ 29P Circles of constant noise figure F = f (ZS) Noise figure F = f (IC) in ZS-plane, IC = 5 m A, VCE = 6 V, f = 800 MHz VCE = 6 V, f = 800 MHz, ZLopt (G)
Page 7 BFQ 29P Common Emitter S Parameters GHz MAG ANG MAG ANG MAG ANG MAG ANG IC = 2 m A, VCE = 6 V, Z0 = 50 0.1 0.93 – 20 6.76 0.03 0.97 – 7 0.2 0.86 – 45 6.42 0.06 0.89 – 17 0.3 0.79 – 62 5.16 0.08 0.85 –...
Page 8 BFQ 29P Common Emitter S Parameters (continued) GHz MAG ANG MAG ANG MAG ANG MAG ANG IC = 5 m A, VCE = 6 V, Z0 = 50 0.1 0.80 – 31 13.96 0.03 0.89 – 13 0.2 0.69 – 66 11.55 0.05 0.76 – 28 0.3 0.57 – 84 8...
Page 9 BFQ 29P Common Emitter S Parameters (continued) GHz MAG ANG MAG ANG MAG ANG MAG ANG IC = 10 m A, VCE = 6 V, Z0 = 50 0.1 0.65 – 46 20.65 0.03 0.79 – 18 0.2 0.53 – 87 14.88 0.04 0.61 – 32 0.3 0.42 – 104...
Page 10 BFQ 29P Common Emitter S Parameters (continued) GHz MAG ANG MAG ANG MAG ANG MAG ANG IC = 20 m A, VCE = 6 V, Z0 = 50 0.1 0.47 – 64 25.26 0.02 0.69 – 21 0.2 0.40 – 108 16.60 0.03 0.50 – 32 0.3 0.33 – 12...
