Siemens CGY0918 Data Sheet
Summary
The CGY 0918 is a high-performance, dual-band GaAs MMIC power amplifier designed specifically for demanding GSM/PCN mobile communication systems. Offering integrated amplification and stable output power up to -35 dBm across multiple bands, this component simplifies RF design. The manual provides comprehensive technical documentation, including detailed functional block diagrams, electrical characteristics, and operational parameters for both GSM900 and PCN modes. It is essential reading for telecommunications engineers and circuit designers building robust cellular radio equipment.
Page 1 Text Content

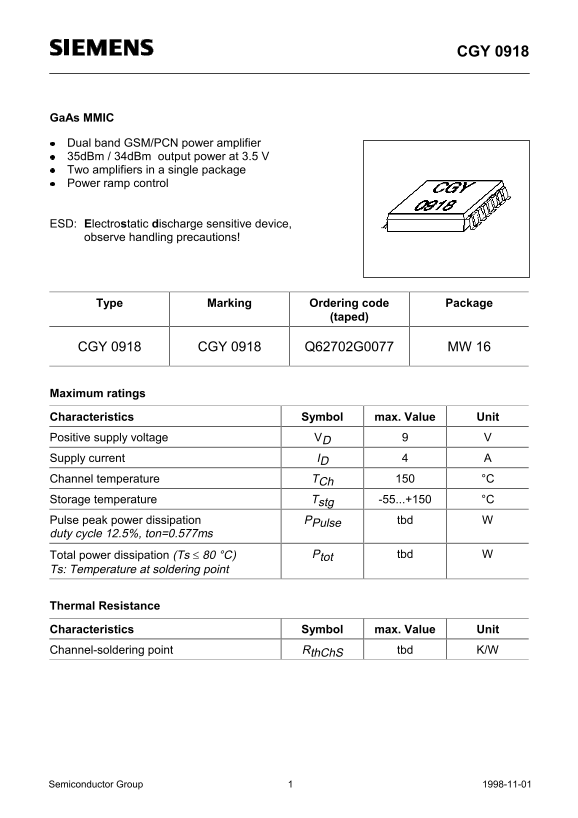

CGY 0918
Ga As MMIC
l Dual band GSM/PCN power amplifier l 35d Bm / 34d Bm output power at 3.5 V l Two amplifiers in a single package l Power ramp control
ESD: Electrostatic discharge sensitive device, observe handling precautions!
Type Marking Ordering code Package
(taped)
CGY 0918 CGY 0918 Q62702G0077 MW 16
Maximum ratings
Characteristics Symbol max. Value Unit Positive supply voltage VD Supply current ID Channel temperature TCh °C Storage temperature Tstg -55...+150 °C Pulse peak power dissipation PPulse tbd duty cycle 12.5%, ton=0.577ms
Total power dissipation (Ts ≤ 80 °C) Ptot tbd
Ts: Temperature at soldering point
Thermal Resistance
Characteristics Symbol max. Value Unit Channel-soldering point Rth Ch S tbd K/W
Siemens Aktiengesellschaft 23.07.98 Semiconductor Group HL HF PE Ga As 1998-11-01
