SIEMENS BAT15 Data Sheet

Summary

This datasheet details high-reliability HiRel Silicon Schottky Diodes (BAT 15 series), engineered for critical detector and mixer applications in microwave circuits. The manual provides comprehensive technical specifications, including detailed electrical characteristics, maximum power ratings, noise figures, and ordering guidelines for various quality levels (Professional, Space Grade). This resource is essential for electronics designers and engineers building high-performance or space-qualified semiconductor systems requiring robust, medium barrier diode solutions.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 9 ›

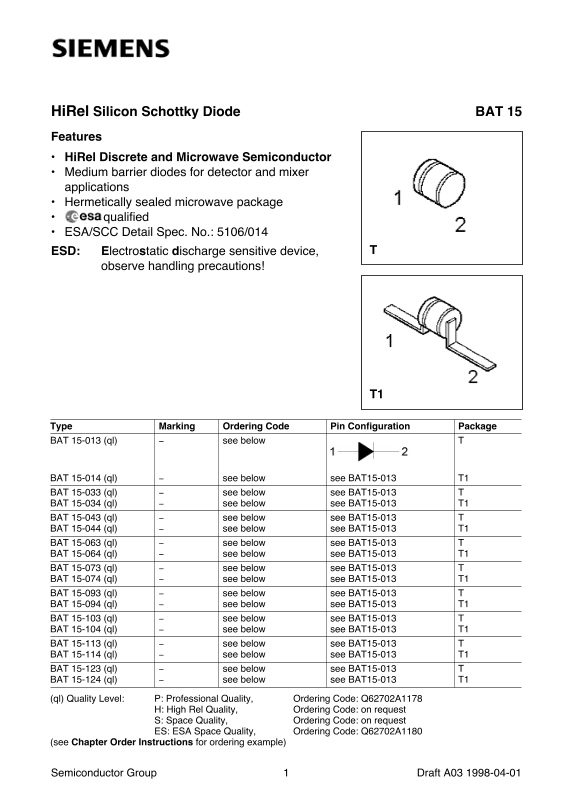

‹ SIEMENS BAT15 Data Sheet - Page 1 ›

Page 1 Text Content

Hi Rel Silicon Schottky Diode BAT 15 Features Hi Rel Discrete and Microwave Semiconductor Medium barrier diodes for detector and mixer applications Hermetically sealed microwave package

qualified ESA/SCC Detail Spec. No.: 5106/014

ESD: Electrostatic discharge sensitive device,

observe handling precautions!

Type Marking Ordering Code Pin Configuration Package BAT 15-013 (ql) see below

BAT 15-014 (ql) see below see BAT15-013 T1 BAT 15-033 (ql) see below see BAT15-013 BAT 15-034 (ql) see below see BAT15-013 T1 BAT 15-043 (ql) see below see BAT15-013 BAT 15-044 (ql) see below see BAT15-013 T1 BAT 15-063 (ql) see below see BAT15-013 BAT 15-064 (ql) see below see BAT15-013 T1 BAT 15-073 (ql) see below see BAT15-013 BAT 15-074 (ql) see below see BAT15-013 T1 BAT 15-093 (ql) see below see BAT15-013 BAT 15-094 (ql) see below see BAT15-013 T1 BAT 15-103 (ql) see below see BAT15-013 BAT 15-104 (ql) see below see BAT15-013 T1 BAT 15-113 (ql) see below see BAT15-013 BAT 15-114 (ql) see below see BAT15-013 T1 BAT 15-123 (ql) see below see BAT15-013 BAT 15-124 (ql) see below see BAT15-013 T1

(ql) Quality Level: P: Professional Quality, Ordering Code: Q62702A1178

H: High Rel Quality, Ordering Code: on request S: Space Quality, Ordering Code: on request ES: ESA Space Quality, Ordering Code: Q62702A1180

(see Chapter Order Instructions for ordering example)

Semiconductor Group Draft A03 1998-04-01

Page Summary Contents For SIEMENS BAT15 Data Sheet

Page 1 Hi Rel Silicon Schottky Diode BAT 15 Features Hi Rel Discrete and Microwave Semiconductor Medium barrier diodes for detector and mixer applications Hermetically sealed microwave package qualified ESA/...
Page 2 BAT 15 Table 1 Maximum Ratings Parameter Symbol Limit Values Unit Reverse voltage VR Forward current IF m A BAT15-013, -014, -033, -034 BAT15-043, -044, -063, -064 BAT15-073, -074, -093, -094 BAT15-10...
Page 3 BAT 15 Electrical Characteristics Table 2 DC Characteristics at TA = 25 °C unless otherwise specified Parameter Symbol Limit Values Unit min. typ. max. Breakdown voltage V(BR) IR = 10 m A Reverse curr...
Page 4 BAT 15 Table 2 DC Characteristics at TA = 25 °C unless otherwise specified (contÕd) Parameter Symbol Limit Values Unit min. typ. max. Series resistance 2) RF IF1 = 10 m A, IF2 = 50 m A BAT15-013, -014...
Page 5 BAT 15 Table 3 AC Characteristics at TA = 25 °C unless otherwise specified Parameter Symbol Limit Values Unit min. typ. max. Total capacitance CT p F VR = 0 V, f = 1 MHz BAT15-013, -014, -033, -034 0....
Page 6 BAT 15 Order Instructions Full type variant including type variant and quality level must be specified by the orderer. For Hi Rel Discrete and Microwave Semiconductors the ordering code specifies devi...
Page 7 BAT 15 Figure 1 T Package Symbol Millimetre min. max. 1.30 1.45 1.15 1.35 Semiconductor Group Draft A03 1998-04-01
Page 8 BAT 15 Figure 2 T1 Package Symbol Millimetre min. max. 1.30 1.45 1.15 1.35 Semiconductor Group Draft A03 1998-04-01
Page 9 WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...
