SIEMENS SPD21N05L SPU21N05L Data Sheet

Summary

Explore the detailed technical specifications for this high-power N-channel MOSFET (Transistor), designed for robust switching applications. This comprehensive manual provides essential data on maximum ratings, electrical performance curves, and dynamic characteristics under various operating conditions. It is an indispensable resource for power electronics engineers and hardware designers requiring reliable component selection for efficient and demanding circuit implementations up to 175°C.

📄 Preview PAGE OF 8

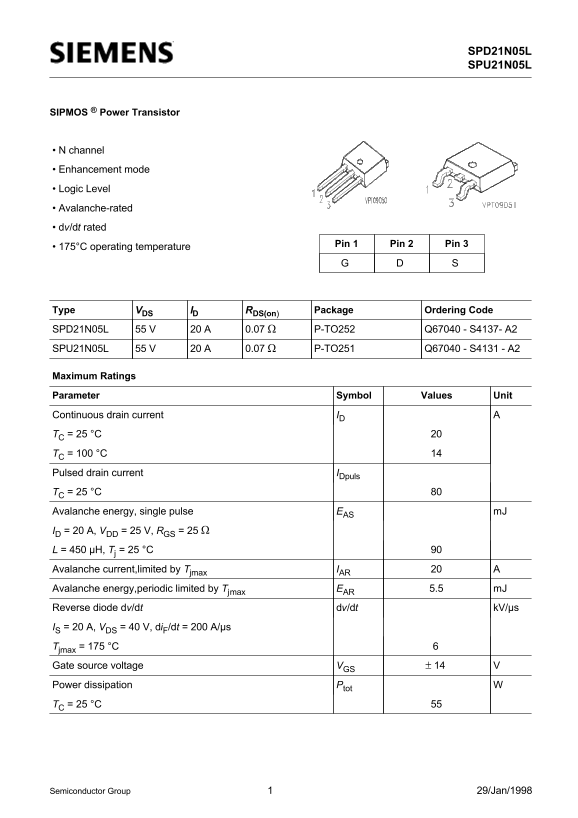

Page 1 Text Content

SPD21N05L SPU21N05L

SIPMOS ® Power Transistor

• N channel • Enhancement mode • Logic Level • Avalanche-rated • dv/dt rated

Pin 1 Pin 2 Pin 3

• 175°C operating temperature

Type VDS ID RDS(on) Package Ordering Code SPD21N05L 55 V 20 A 0.07 Ω P-TO252 Q67040 - S4137- A2 SPU21N05L 55 V 20 A 0.07 Ω P-TO251 Q67040 - S4131 - A2

Maximum Ratings Parameter Symbol Values Unit

Continuous drain current ID TC = 25 °C TC = 100 °C Pulsed drain current IDpuls TC = 25 °C Avalanche energy, single pulse EAS m J ID = 20 A, VDD = 25 V, RGS = 25 Ω L = 450 µH, Tj = 25 °C Avalanche current,limited by Tjmax IAR Avalanche energy,periodic limited by Tjmax EAR 5.5 m J Reverse diode dv/dt dv/dt k V/µs IS = 20 A, VDS = 40 V, di F/dt = 200 A/µs Tjmax = 175 °C Gate source voltage VGS ± 14 Power dissipation Ptot TC = 25 °C

Semiconductor Group 29/Jan/1998

Page Summary Contents For SIEMENS SPD21N05L SPU21N05L Data Sheet

Page 1 SPD21N05L SPU21N05L SIPMOS ® Power Transistor • N channel • Enhancement mode • Logic Level • Avalanche-rated • dv/dt rated Pin 1 Pin 2 Pin 3 • 175°C operating temperature Type VDS ID RDS(on) Package O...
Page 2 SPD21N05L SPU21N05L Maximum Ratings Parameter Symbol Values Unit Operating temperature Tj -55 ... + 175 °C Storage temperature Tstg -55 ... + 175 Thermal resistance, junction - case Rth JC ≤ 2.7 K/W T...
Page 3 SPD21N05L SPU21N05L Electrical Characteristics, at Tj = 25°C, unless otherwise specified Parameter Symbol Values Unit min. typ. max. Dynamic Characteristics Transconductance gfs VDS≥ 2 * ID * RDS(on)m...
Page 4 SPD21N05L SPU21N05L Electrical Characteristics, at Tj = 25°C, unless otherwise specified Parameter Symbol Values Unit min. typ. max. Reverse Diode Inverse diode continuous forward current IS TC = 25 °...
Page 5 SPD21N05L SPU21N05L R DS(o Power dissipation n) Drain current Ptot = ƒ(TC) DS ID = ƒ(TC) I D parameter: VGS ≥ 4 V °C °C TC TC Safe operating area Transient thermal impedance ID = ƒ(VDS) Zth JC = ƒ(tp)...
Page 6 SPD21N05L SPU21N05L Typ. output characteristics Typ. drain-source on-resistance ID = ƒ(VDS) RDS (on) = ƒ(ID) parameter: tp = 80 µs parameter: tp = 80 µs, Tj = 25 °C l Ptot = 55W VGS [V] DS (on) 0.04 V...
Page 7 SPD21N05L SPU21N05L Drain-source on-resistance Gate threshold voltage RDS (on) = ƒ(Tj) VGS(th)= f (Tj) parameter: ID = 14 A, VGS = 4.5 V parameter:VGS=VDS,ID = 40µA 2.4 DS (on) GS(th) 0.00 0.0 min Typ...
Page 8 SPD21N05L SPU21N05L Avalanche energy EAS = f (Tj) Typ. gate charge parameter:ID=20A,VDD =25 V VGS = ƒ(QGate) RGS =25 Ω , L = 450µH parameter: ID puls = 20 A AS GS V0,2 V0,8 DS max DS max QGate Drain-s...
