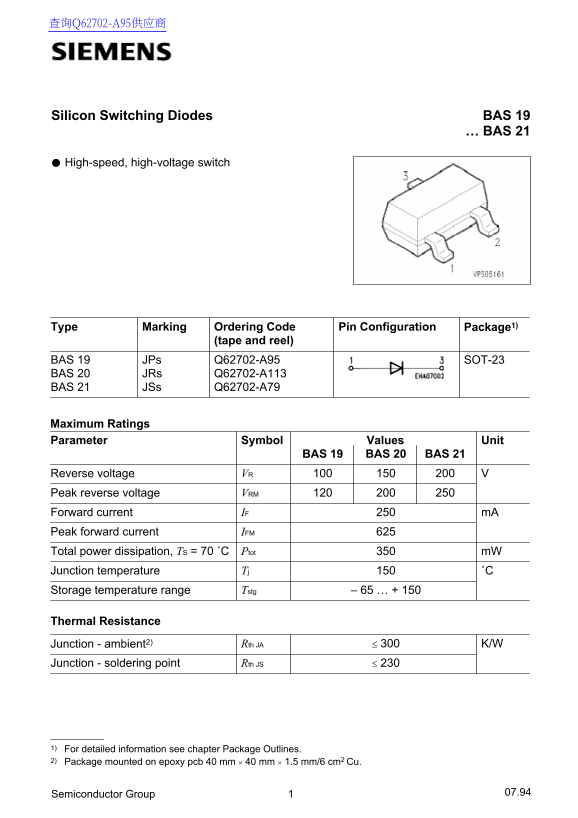

Silicon Switching Diodes BAS 19
… BAS 21
High-speed, high-voltage switch
Type Marking Ordering Code Package1)Pin Configuration
(tape and reel)
BAS 19 JPs Q62702-A95 SOT-23 BAS 20 JRs Q62702-A113 BAS 21 JSs Q62702-A79
Maximum Ratings Parameter Symbol Values Unit
BAS BAS BAS
Reverse voltage VR Peak reverse voltage VRM Forward current IF m A Peak forward current IFM Total power dissipation, TS = 70 ˚C Ptot m W Junction temperature Tj ˚C Storage temperature range Tstg – 65 … + 150
Thermal Resistance
Junction - ambient2) Rth JA ≤ 300 K/W
Junction - soldering point Rth JS ≤ 230
1) For detailed information see chapter Package Outlines. 2) Package mounted on epoxy pcb 40 mm mm mm/6 cm2 Cu.
