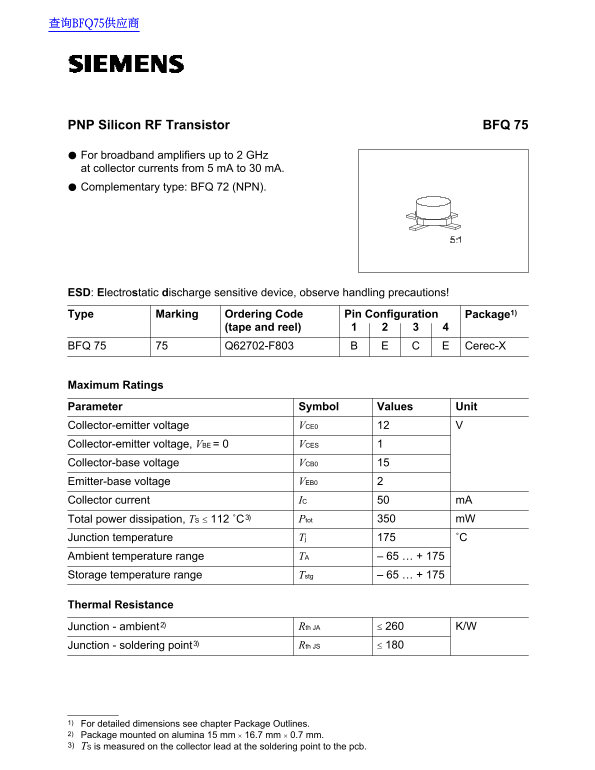

Page 1 Text Content

查询BFQ75供应商

PNP Silicon RF Transistor BFQ 75

For broadband amplifiers up to 2 GHz at collector currents from 5 m A to 30 m A. Complementary type: BFQ 72 (NPN).

ESD: Electrostatic discharge sensitive device, observe handling precautions!

Type Marking Ordering Code Package1)Pin Configuration (tape and reel)

BFQ 75 Q62702-F80375 Cerec-X

Maximum Ratings

Parameter Symbol Values Unit Collector-emitter voltage VCE0 Collector-emitter voltage, VBE = 0 VCES Collector-base voltage VCB0 Emitter-base voltage VEB0

Collector current IC m A

Total power dissipation, TS ˚C3) Ptot m W

Junction temperature Tj ˚C

Ambient temperature range TA – 65 … + 175

Storage temperature range Tstg – 65 … + 175

Thermal Resistance

Junction - ambient2) Rth JA ≤ 260 K/W Junction - soldering point3) Rth JS ≤ 180

1) For detailed dimensions see chapter Package Outlines. 2) Package mounted on alumina 15 mm 16.7 mm 0.7 mm. 3) TS is measured on the collector lead at the soldering point to the pcb.

Page Summary Contents For Siemens BFQ 75 Data Handbook

Page 1 查询BFQ75供应商 PNP Silicon RF Transistor BFQ 75 For broadband amplifiers up to 2 GHz at collector currents from 5 m A to 30 m A. Complementary type: BFQ 72 (NPN). ESD: Electrostatic discharge sensitive de...
Page 2 BFQ 75 Electrical Characteristics at TA = 25 ˚C, unless otherwise specified. Symbol Unit Values Parameter min. typ. max. DC Characteristics V(BR)CE0 VCollector-emitter breakdown voltage IC = 1 m A, IB...
Page 3 BFQ 75 Total power dissipation Ptot = f (TA*; TS) Transition frequency f T = f (IC) *Package mounted on alumina VCE = 5 V, f = 500 MHz Collector-base capacitance Ccb = f (VCB) VBE = vbe = 0, f = 1 MHz
