The SN 7002 is a highly reliable N-channel logic-level small-signal transistor packaged in an SOT-23 format. This comprehensive technical manual is designed for hardware engineers and circuit designers who need detailed component specifications. It covers extensive electrical characteristics, including maximum ratings (voltage and current limits), dynamic performance data (such as rise/fall times and transconductance), thermal dissipation guidelines, and operational parameters required for precise integration into complex electronic circuits.

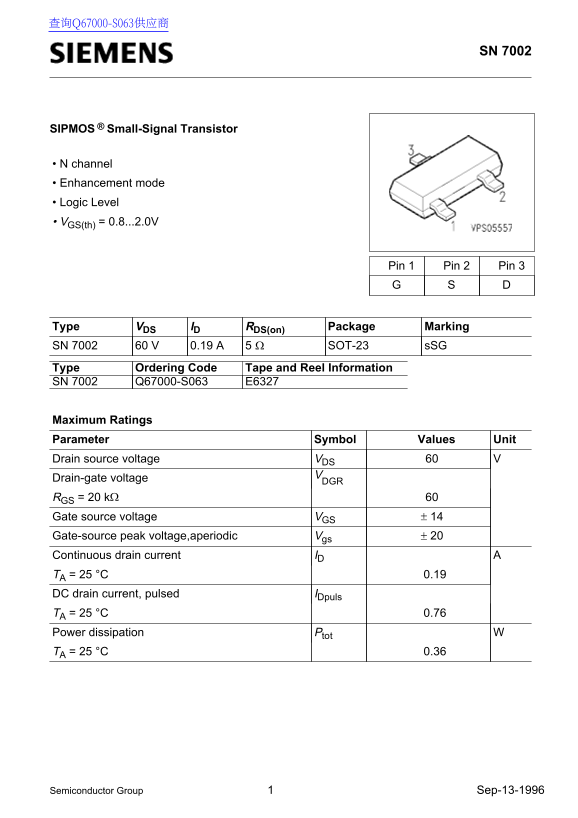

Page 1 Text Content
SN 7002
SIPMOS ® Small-Signal Transistor
• N channel • Enhancement mode • Logic Level • VGS(th) = 0.8...2.0V
Pin 1 Pin 2 Pin 3
Type VDS ID RDS(on) Package Marking SN 7002 60 V 0.19 A 5 Ω SOT-23 s SG Type Ordering Code Tape and Reel Information SN 7002 Q67000-S063 E6327
Maximum Ratings
Parameter Symbol Values Unit
Drain source voltage VDS Drain-gate voltage
RGS = 20 kΩ
Gate source voltage VGS ± 14
Gate-source peak voltage,aperiodic Vgs ± 20 Continuous drain current ID TA = 25 °C 0.19 DC drain current, pulsed IDpuls TA = 25 °C 0.76 Power dissipation Ptot TA = 25 °C 0.36
Semiconductor Group Sep-13-1996
Page Summary Contents For SIEMENS SN 7002 Data Handbook
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 8 |
| File Size | 122.22 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range?
The chip or operating temperature range (T) is -55 to +150°C.
Can I use this transistor with high drain current or find its max rating?
The continuous drain current (IAD) at 25°C is 0.19 A, and pulsed drain current (IDpuls) is 0.76 A.
What are the main electrical characteristics of the SN 7002?
Key parameters include a gate threshold voltage (GS(th)) ranging from 0.8 V to 1.4 V, and an on-state resistance (RDS(on)) typically around 3.6 Ω at room temperature.
How is this component package marked and what are its dimensions?
It uses the SOT-23 package, with the dimensions listed in the 'Package outlines' section.
