SIEMENS SN 7000 Data Sheet/Manual
Summary
A reliable N-channel small-signal transistor designed for low-voltage, logic-level switching applications. This comprehensive technical datasheet provides essential product information for electronics designers, detailing maximum ratings, static electrical characteristics, and dynamic performance. It covers operational parameters like $R_{DS(on)}$ and threshold voltage across extreme temperatures, enabling accurate circuit design and system optimization.

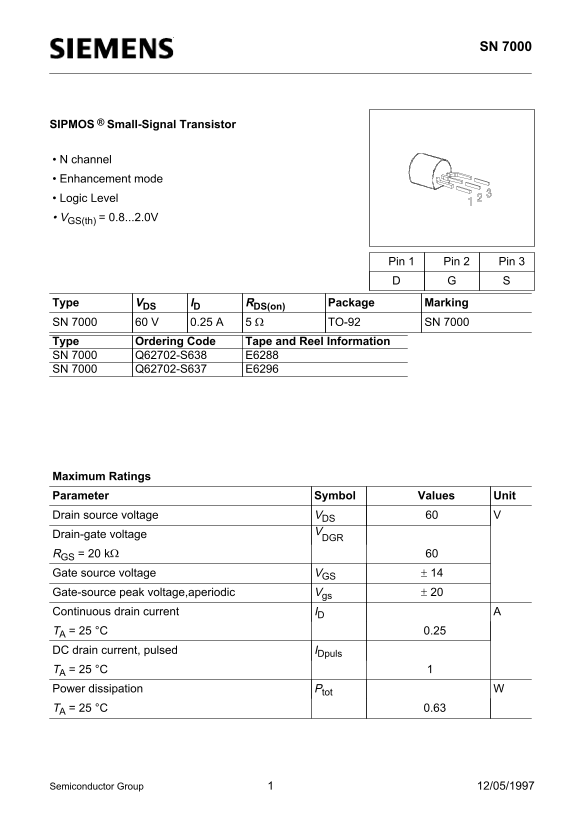

Page 1 Text Content
SN 7000
SIPMOS ® Small-Signal Transistor
• N channel • Enhancement mode • Logic Level • VGS(th) = 0.8...2.0V
Pin 1 Pin 2 Pin 3
Type VDS ID RDS(on) Package Marking
SN 7000 60 V 0.25 A 5 Ω TO-92 SN 7000 Type Ordering Code Tape and Reel Information SN 7000 Q62702-S638 E6288 SN 7000 Q62702-S637 E6296
Maximum Ratings
Parameter Symbol Values Unit
Drain source voltage VDS Drain-gate voltage
RGS = 20 kΩ
Gate source voltage VGS ± 14 Gate-source peak voltage,aperiodic Vgs ± 20
Continuous drain current ID TA = 25 °C 0.25 DC drain current, pulsed IDpuls TA = 25 °C Power dissipation Ptot TA = 25 °C 0.63
Semiconductor Group 12/05/1997
Page Summary Contents For SIEMENS SN 7000 Data Sheet/Manual
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 7 |
| File Size | 79.54 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum drain-source voltage before breakdown?
The device's drain-source breakdown voltage ($ ext{V(BR)DSS}$) is rated at 60 V.
What are the operational temperature limits?
It can operate within a temperature range of -55 °C to +150 °C.
What is the typical on-state resistance of the MOSFET?
The typical drain-source on-resistance ($ ext{R}_{DS(on)}$) is 2.5 Ohms.
What is the maximum continuous drainage current allowable?
The continuous drain current ($ ext{I}_{ADT}$) must not exceed 0.25 A.
