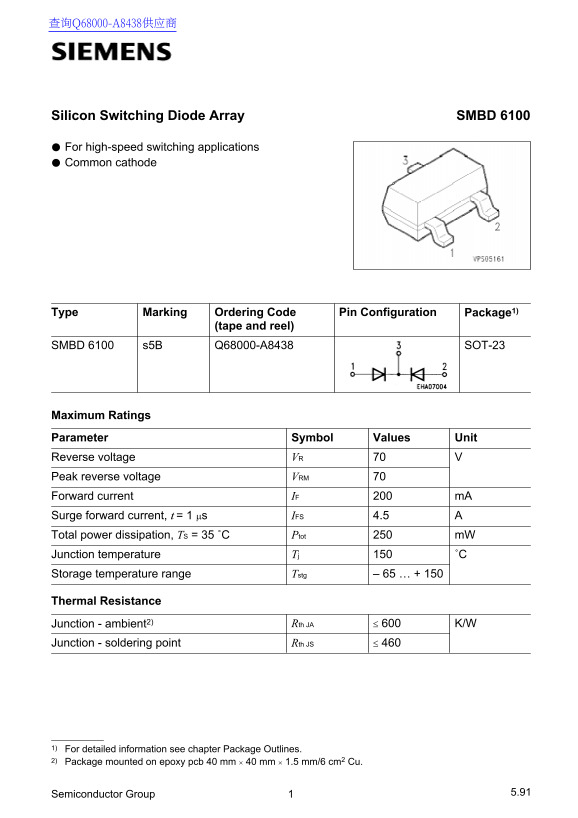

Page 1 Text Content
Silicon Switching Diode Array SMBD 6100
For high-speed switching applications Common cathode
Type Marking Ordering Code Package1)Pin Configuration
(tape and reel)
SMBD 6100 Q68000-A8438s5B SOT-23
Maximum Ratings Parameter Symbol Values Unit Reverse voltage VR Peak reverse voltage VRM Forward current IF m A Surge forward current, = 1 µs IFS 4.5 Total power dissipation, TS ˚C Ptot m W Junction temperature Tj ˚C Storage temperature range Tstg – 65 … + 150
Thermal Resistance
Junction - ambient2) Rth JA ≤ 600 K/W
Junction - soldering point Rth JS ≤ 460
1) For detailed information see chapter Package Outlines. 2) Package mounted on epoxy pcb 40 mm
× 40 mm × 1.5 mm/6 cm2 Cu.
Semiconductor Group 5.91
