The SMBD series is a Silicon Switching Diode Array designed specifically for demanding, high-speed switching applications using a common anode configuration. This manual provides comprehensive technical documentation covering all necessary parameters for reliable circuit design. It details maximum electrical ratings, DC and AC characteristics, crucial figures like breakdown voltage ($\text{V}_{\text{BR}}$) and fast reverse recovery time ($\text{t}_{\text{rr}}$), alongside detailed thermal performance curves. This resource is essential for electronics engineers and designers integrating high-performance switching components into their electronic circuits.

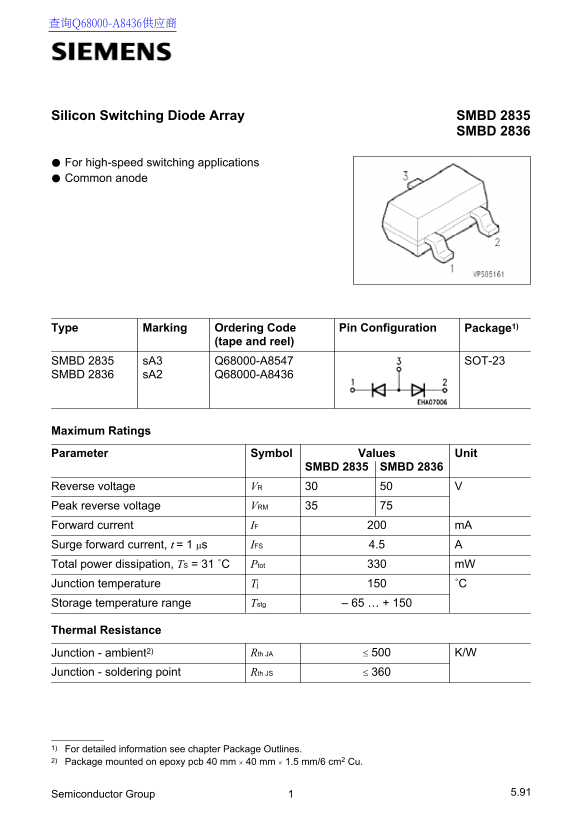

Page 1 Text Content
Silicon Switching Diode Array SMBD 2835
SMBD 2836
For high-speed switching applications Common anode
Type Marking Ordering Code Package1)Pin Configuration
(tape and reel)
SMBD 2835 s A3 Q68000-A8547 SOT-23 SMBD 2836 s A2 Q68000-A8436
Maximum Ratings Parameter Symbol Values Unit
SMBD 2835 SMBD 2836
Reverse voltage VR Peak reverse voltage VRM Forward current IF m A Surge forward current, = 1 µs IFS 4.5 Total power dissipation, TS ˚C Ptot m W Junction temperature Tj ˚C Storage temperature range Tstg – 65 … + 150
Thermal Resistance
Junction - ambient2) Rth JA ≤ 500 K/W
Junction - soldering point Rth JS ≤ 360
1) For detailed information see chapter Package Outlines. 2) Package mounted on epoxy pcb 40 mm
× 40 mm × 1.5 mm/6 cm2 Cu.
Semiconductor Group 5.91
Page Summary Contents For Siemens SMBD 2835 2836 Data Sheet User Guide
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 4 |
| File Size | 102.04 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum reverse voltage for the SMBD 2835?
The peak reverse voltage (VRM) for the SMBD 2835 is 35V.
Can I use this diode array in high-speed applications?
Yes, the data sheet specifies it is suitable 'For high-speed switching applications.'
What is the total power dissipation limit for both models?
The maximum specified total power dissipation (Ptot) is 330 mW.
How low can this component operate temperature-wise?
The operational junction temperature range is -65°C to +150°C.
