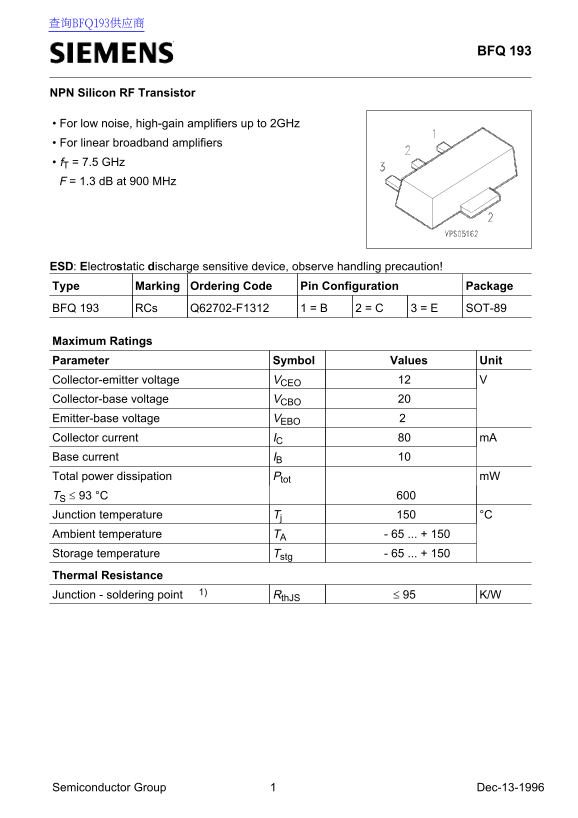

BFQ 193
NPN Silicon RF Transistor
• For low noise, high-gain amplifiers up to 2GHz • For linear broadband amplifiers • f T = 7.5 GHz F = 1.3 d B at 900 MHz
ESD: Electrostatic discharge sensitive device, observe handling precaution! Type Marking Ordering Code Pin Configuration Package BFQ 193 RCs Q62702-F1312 1 = B 2 = C 3 = E SOT-89
Maximum Ratings Parameter Symbol Values Unit Collector-emitter voltage VCEO Collector-base voltage VCBO Emitter-base voltage VEBO Collector current IC m A Base current IB Total power dissipation Ptot m W TS ≤ 93 °C Junction temperature Tj °C Ambient temperature TA - 65 ... + 150 Storage temperature Tstg - 65 ... + 150 Thermal Resistance
Junction - soldering point 1) Rth JS ≤ 95 K/W
Semiconductor Group Dec-13-1996
