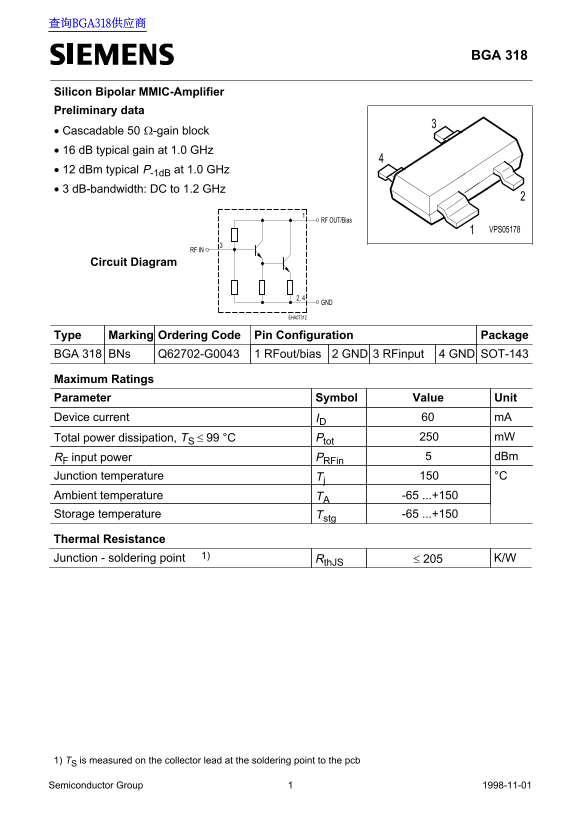

BGA 318
Silicon Bipolar MMIC-Amplifier Preliminary data • Cascadable 50 Ω-gain block • 16 d B typical gain at 1.0 GHz • 12 d Bm typical P-1d B at 1.0 GHz • 3 d B-bandwidth: DC to 1.2 GHz
RF OUT/Bias
VPS05178
RF IN
Circuit Diagram
EHA07312
Type Marking Ordering Code Pin Configuration Package BGA 318 BNs Q62702-G0043 1 RFout/bias 2 GND 3 RFinput 4 GND SOT-143
Maximum Ratings Parameter Value Symbol Unit Device current ID m A60
Total power dissipation, TS ≤ 99 °C 250Ptot m W
RF input power d Bm5PRFin Tj Junction temperature °C
Ambient temperature TA -65 ...+150 Storage temperature Tstg -65 ...+150
Thermal Resistance
Junction - soldering point 1) Rth JS ≤ 205 K/W
1) TS is measured on the collector lead at the soldering point to the pcb
Semiconductor Group Sep-04-19981 Semiconductor Group 1998-11-01
