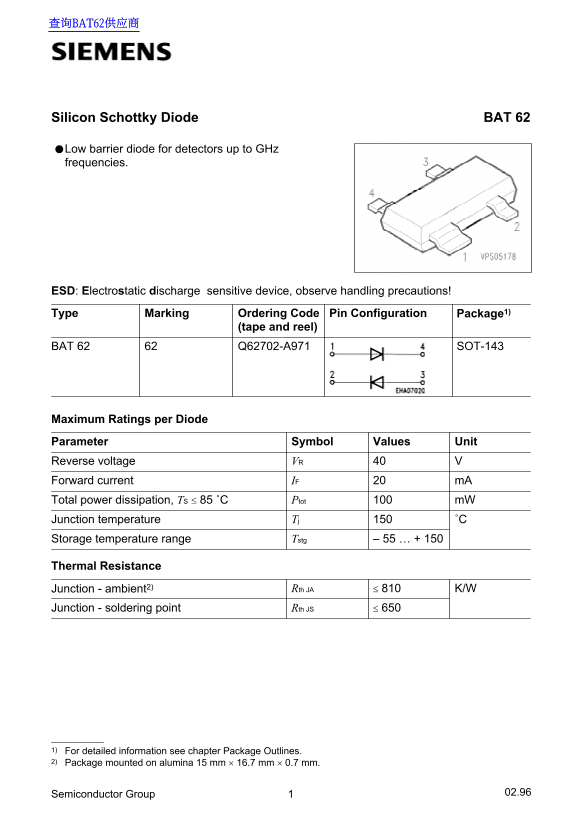

Silicon Schottky Diode BAT 62
Low barrier diode for detectors up to GHz frequencies.
ESD: Electrostatic discharge sensitive device, observe handling precautions! Type Marking Ordering Code Package1)Pin Configuration
(tape and reel)
Q62702-A97162 SOT-143BAT 62
Maximum Ratings per Diode Parameter Symbol Values Unit Reverse voltage VR Forward current IF m A
Total power dissipation, TS ˚C Ptot m W
Junction temperature Tj ˚C
Storage temperature range Tstg – 55 … + 150
Thermal Resistance
Junction - ambient2) Rth JA ≤ 810 K/W
Junction - soldering point Rth JS ≤ 650
1) For detailed information see chapter Package Outlines. 2) Package mounted on alumina 15 mm × 16.7 mm × 0.7 mm.
Semiconductor Group 02.96
