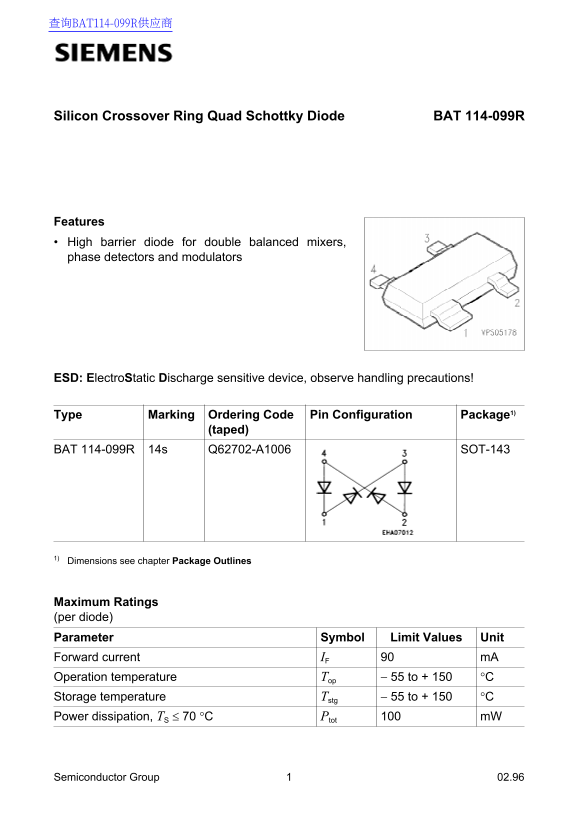

Silicon Crossover Ring Quad Schottky Diode BAT 114-099R
Features High barrier diode for double balanced mixers, phase detectors and modulators
ESD: Electro Static Discharge sensitive device, observe handling precautions!
Type Marking Ordering Code Pin Configuration Package1)
(taped)
BAT 114-099R 14s Q62702-A1006 SOT-143
1) Dimensions see chapter Package Outlines
Maximum Ratings (per diode) Parameter Symbol Limit Values Unit Forward current IF m A Operation temperature − 55 to + 150 °C Storage temperature Tstg − 55 to + 150 °C Power dissipation, TS ≤ 70 °C Ptot m W
