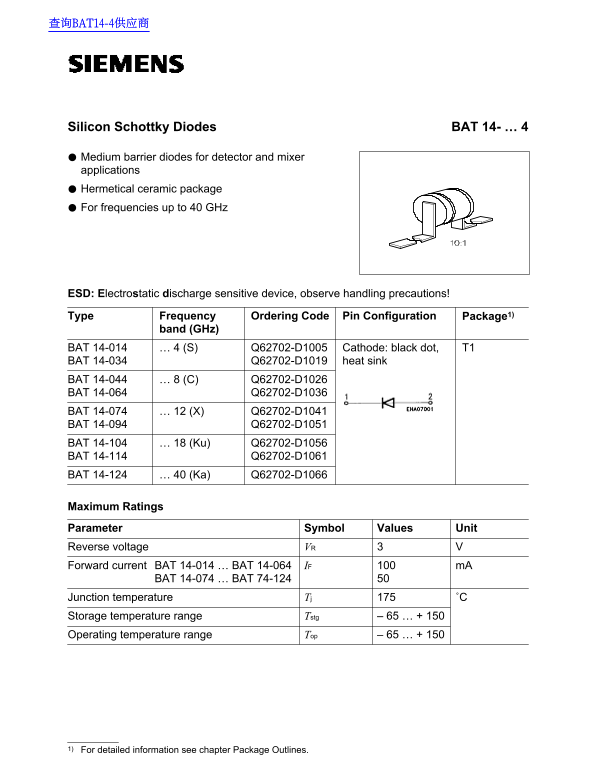

Page 1 Text Content
查询BAT14-4供应商
Silicon Schottky Diodes BAT 14- … 4
Medium barrier diodes for detector and mixer applications Hermetical ceramic package For frequencies up to 40 GHz
ESD: Electrostatic discharge sensitive device, observe handling precautions!
Type Frequency Ordering Code Package1)Pin Configuration
band (GHz)
BAT 14-014 … 4 (S) Q62702-D1005 Cathode: black dot, T1 BAT 14-034 Q62702-D1019 heat sink
BAT 14-044 … 8 (C) Q62702-D1026 BAT 14-064 Q62702-D1036 BAT 14-074 … 12 (X) Q62702-D1041 BAT 14-094 Q62702-D1051 BAT 14-104 … 18 (Ku) Q62702-D1056 BAT 14-114 Q62702-D1061 BAT 14-124 Q62702-D1066… 40 (Ka)
Maximum Ratings
Parameter Symbol Values Unit Reverse voltage VR Forward current BAT 14-014 … BAT 14-064 IF m A
BAT 14-074 … BAT 74-124
Junction temperature Tj ˚C
Storage temperature range Tstg – 65 … + 150 Operating temperature range – 65 … + 150
1) For detailed information see chapter Package Outlines.
