Siemens BAT 14-098 Data Sheet
Summary
The BAT14-098 is a high-performance Silicon Schottky Diode engineered for demanding RF applications, such as 12 GHz mixer designs. This datasheet provides comprehensive technical data, detailing maximum ratings, electrical characteristics across various temperatures and currents, and precise S11 parameters spanning multiple gigahertz ranges. It is essential documentation for RF engineers and circuit designers who require reliable, low-noise components for high-frequency printed circuit board development.
Page 1 Text Content
查询BAT14-098供应商

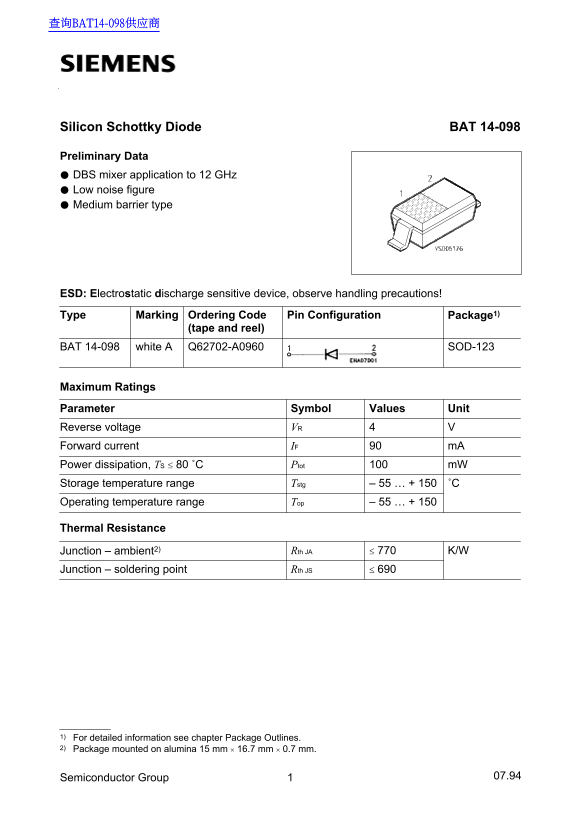

Silicon Schottky Diode BAT 14-098
Preliminary Data DBS mixer application to 12 GHz Low noise figure Medium barrier type
ESD: Electrostatic discharge sensitive device, observe handling precautions!
Type Marking Ordering Code Package1)Pin Configuration
(tape and reel)
BAT 14-098 Q62702-A0960white A SOD-123
Maximum Ratings
Parameter Symbol Values Unit Reverse voltage VR Forward current IF m A Power dissipation, TS ≤ 80 ˚C Ptot m W
Storage temperature range Tstg – 55 … + 150 ˚C Operating temperature range – 55 … + 150
Thermal Resistance
Junction – ambient2) Rth JA ≤ 770 K/W
Junction – soldering point Rth JS ≤ 690
1) For detailed information see chapter Package Outlines. 2) Package mounted on alumina 15 mm 16.7 mm × 0.7 mm.
Semiconductor Group 07.94
