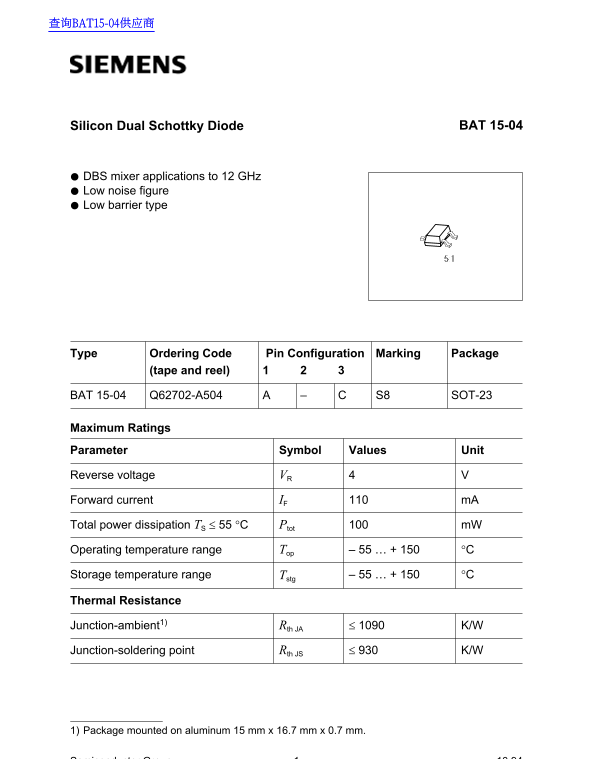

Page 1 Text Content
查询BAT15-04供应商
Silicon Dual Schottky Diode BAT 15-04
DBS mixer applications to 12 GHz Low noise figure Low barrier type
Type Ordering Code Pin Configuration Marking Package
(tape and reel)
BAT 15-04 Q62702-A504 S8 SOT-23
Maximum Ratings Parameter Symbol Values Unit
Reverse voltage VR
Forward current IF m A
Total power dissipation TS °C Ptot m W
Operating temperature range – 55 … + 150 °C
Storage temperature range Tstg – 55 … + 150 °C
Thermal Resistance
Junction-ambient1) Rth JA K/W
Junction-soldering point Rth JS K/W
1) Package mounted on aluminum 15 mm x 16.7 mm x 0.7 mm.
Semiconductor Group
Page Summary Contents For Siemens BAT 15-04 Data Sheet
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 3 |
| File Size | 70.03 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum frequency range for this diode?
It is suitable for applications up to 12 GHz and features a low noise figure.
What is the recommended operating temperature range?
The device supports an operational temperature range (T_op) of -55°C to +150°C.
How much continuous power can I dissipate safely?
The total permissible power dissipation (P_D) rating for this diode is 100 mW.
What professional packaging format is provided?
It is available in the SOT-23 package, supplied as tape and reel.
