Discover the BAT 114-099 Silicon Dual Schottky Diode, an essential high-barrier component engineered for demanding RF applications including balanced mixers, phase detectors, and modulators. This technical manual provides comprehensive specifications, covering maximum ratings, detailed electrical characteristics (such as forward voltage and capacitance), and thermal performance data. It is designed for electrical engineers and design specialists who require reliable, precise component data for integrating high-frequency semiconductor solutions into advanced electronic systems.
Page 1 Text Content
查询BAT114-099供应商

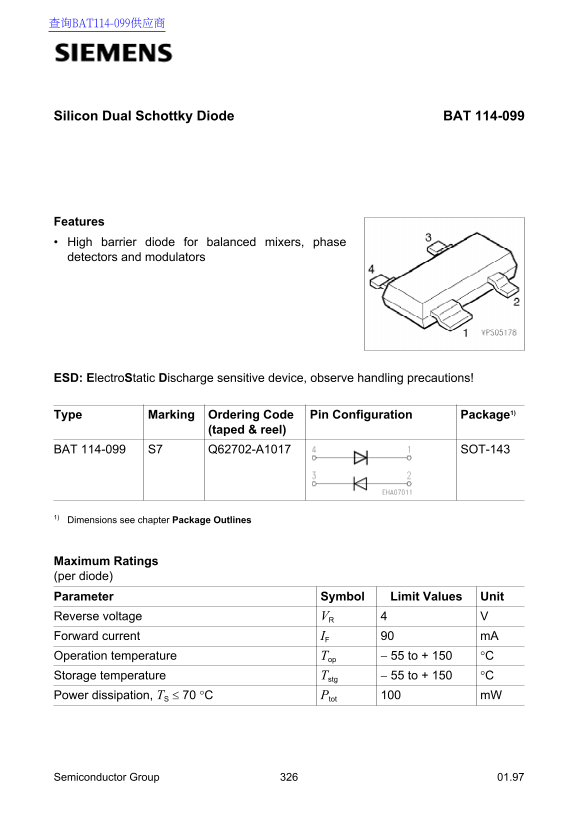

Silicon Dual Schottky Diode BAT 114-099
Features High barrier diode for balanced mixers, phase detectors and modulators
ESD: Electro Static Discharge sensitive device, observe handling precautions!
Type Marking Ordering Code Pin Configuration Package1)
(taped & reel)
BAT 114-099 S7 Q62702-A1017 SOT-143
1) Dimensions see chapter Package Outlines
Maximum Ratings (per diode) Parameter Symbol Limit Values Unit Reverse voltage VR Forward current IF m A Operation temperature − 55 to + 150 °C Storage temperature Tstg − 55 to + 150 °C Power dissipation, TS ≤ 70 °C Ptot m W
Semiconductor Group 01.97
Page Summary Contents For Siemens BAT 114-099 Data Sheet
Manual Details
| Brand | Siemens |
|---|---|
| Pages | 3 |
| File Size | 49.01 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the maximum operating temperature ranges for BAT114-099?
The operable temperature range is from -55 °C to +150 °C.
Can this diode handle a reverse voltage of 4V?
Yes, the maximum rating for Reverse voltage (V R) is 4V.
What should I observe when handling this sensitive device?
It is an ElectroStatic Discharge sensitive device, so observation of proper handling precautions is required.
Does the electrical specification include compatibility information?
The text provides parameters like Forward Voltage and Diode Capacitance but does not specify external integration compatibility beyond its intended use.
