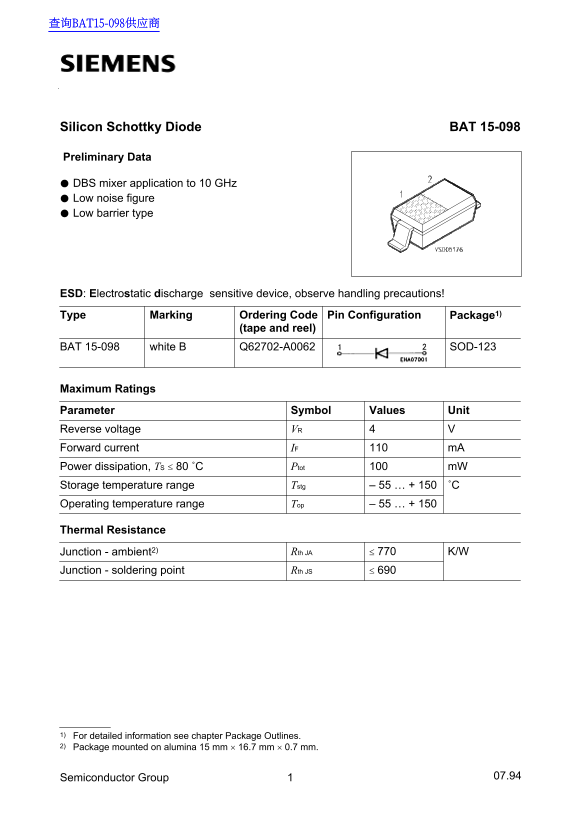

Silicon Schottky Diode BAT 15-098
Preliminary Data
DBS mixer application to 10 GHz Low noise figure Low barrier type
ESD: Electrostatic discharge sensitive device, observe handling precautions!
Type Marking Ordering Code Package1)Pin Configuration
(tape and reel)
Q62702-A0062white B SOD-123BAT 15-098
Maximum Ratings
Parameter Symbol Values Unit Reverse voltage VR Forward current IF m A
Power dissipation, TS ˚C Ptot m W
Storage temperature range Tstg – 55 … + 150 ˚C
Operating temperature range – 55 … + 150
Thermal Resistance
Junction - ambient2) Rth JA ≤ 770 K/W
Junction - soldering point Rth JS ≤ 690
1) For detailed information see chapter Package Outlines. 2) Package mounted on alumina 15 mm × 16.7 mm × 0.7 mm.
Semiconductor Group 07.94
