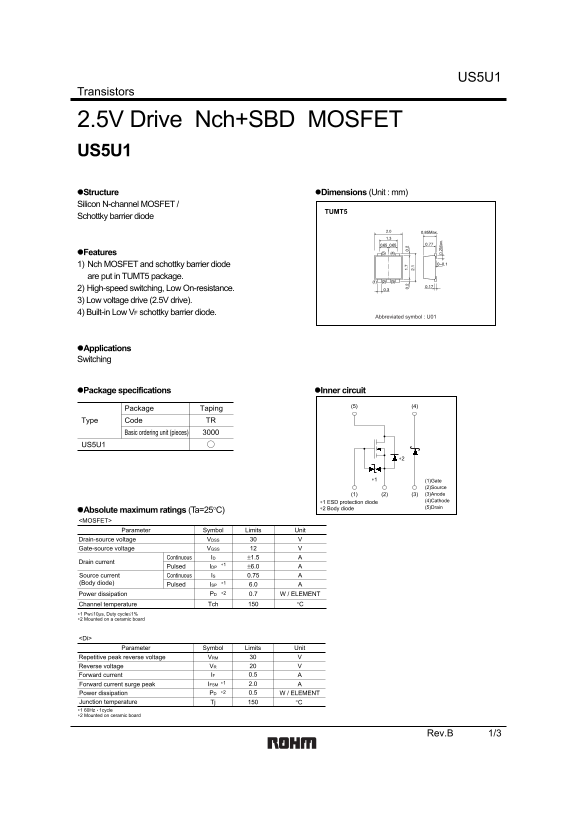

US5U1
Transistors
2.5V Drive Nch+SBD MOSFET US5U1 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET /
TUMT5
Schottky barrier diode
Features 1) Nch MOSFET and schottky barrier diode are put in TUMT5 package. 2) High-speed switching, Low On-resistance. 3) Low voltage drive (2.5V drive). 4) Built-in Low VF schottky barrier diode.
Abbreviated symbol : U01
Applications Switching
Package specifications Inner circuit
Package Taping
Type Code TR
Basic ordering unit (pieces)
0. 2M ax
US5U1
∗1 (1)Gate
(2)Source (1) (2) (3) (3)Anode ∗1 ESD protection diode (4)Cathode ∗2 Body diode (5)Drain
Absolute maximum ratings (Ta=25°C) <MOSFET>
Parameter Symbol Limits Unit
Drain-source voltage VVDSS Gate-source voltage VVGSS Continuous ±1.5 AID
Drain current
Pulsed ±6.0 AIDP Source current Continuous 0.75 AIS
(Body diode) Pulsed ∗1 6.0 AISP Power dissipation ∗2PD W / ELEMENT0.7
Channel temperature °CTch
∗1 Pw≤10µs, Duty cycle≤1% ∗2 Mounted on a ceramic board
Parameter Symbol Limits Unit
Repetitive peak reverse voltage VVRM Reverse voltage VVR
Forward current 0.5 AIF
Forward current surge peak ∗1 2.0 AIFSM Power dissipation ∗2 0.5 W / ELEMENTPD
Junction temperature Tj °C ∗1 60Hz 1cycle ∗2 Mounted on ceramic board
Rev.B 1/3
