The DTD123EK is a specialized NPN epitaxial planar silicon transistor designed for efficiently configuring inverter and driver circuits. Its key feature is the built-in bias resistors which simplify design by eliminating the need for external input components, while also minimizing parasitic effects. This manual provides comprehensive technical data, including detailed absolute maximum ratings, electrical characteristics, and application curve analysis necessary for engineers designing advanced interface and switching applications.

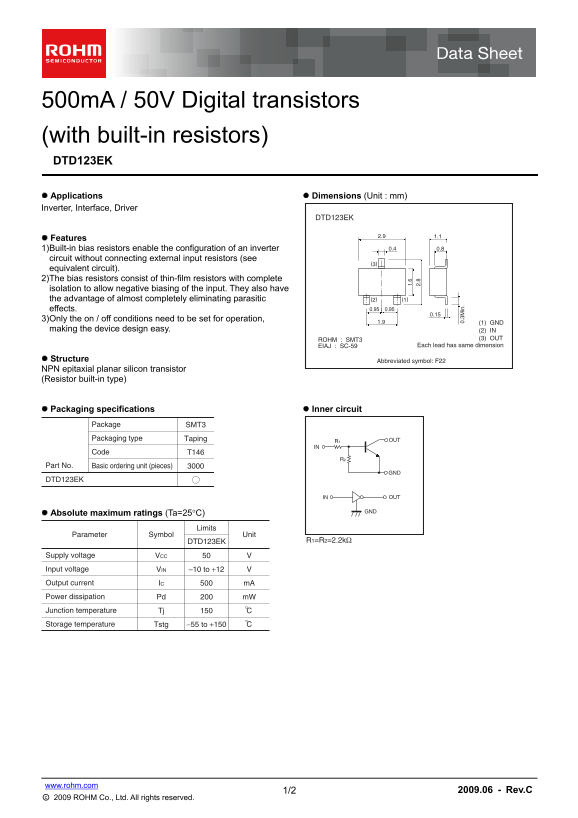

Page 1 Text Content
500m A / 50V Digital transistors (with built-in resistors) DTD123EK Applications Dimensions (Unit : mm) Inverter, Interface, Driver
DTD123EK
Features
1) Built-in bias resistors enable the configuration of an inverter 0.4 0.8
circuit without connecting external input resistors (see
equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have
the advantage of almost completely eliminating parasitic (2) (1) effects. 0.95 0.95
3) Only the on / off conditions need to be set for operation,
1.9 (1) GND
making the device design easy. (2) IN
(3) OUTROHM : SMT3
EIAJ : SC-59 Each lead has same dimension
Structure Abbreviated symbol: F22 NPN epitaxial planar silicon transistor (Resistor built-in type)
Packaging specifications Inner circuit 1.
Package SMT3
Packaging type Taping OUT
Code T146
0. 3M in
Part No. Basic ordering unit (pieces)
DTD123EK
IN OUT
Absolute maximum ratings (Ta=25C)
Limits
Parameter Symbol Unit
DTD123EK R1=R2=2.2kΩ
Supply voltage VCC
Input voltage VIN −10 to +12
Output current IC m A
Power dissipation Pd m W
Junction temperature Tj
Storage temperature Tstg −55 to +150
www.rohm.com
1/2 2009.06 - Rev.C
○c 2009 ROHM Co., Ltd. All rights reserved.
