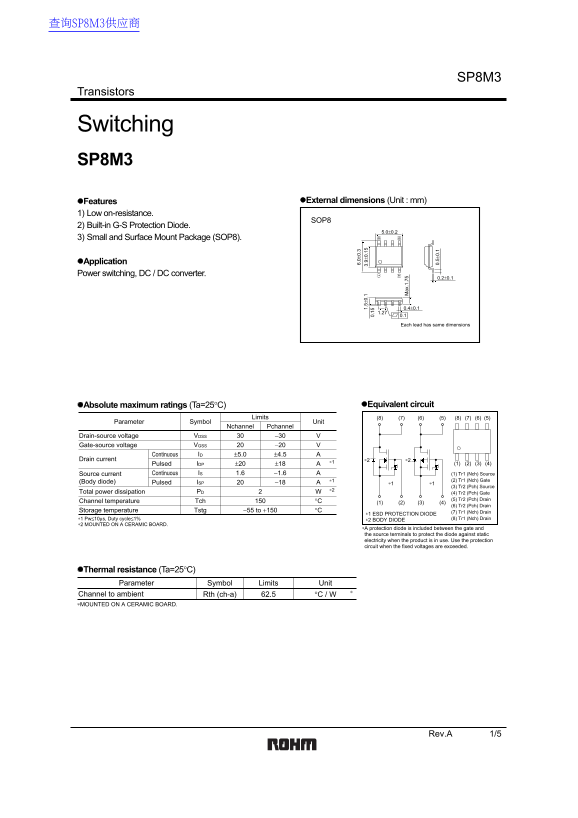

SP8M3

Transistors

Switching SP8M3

Features External dimensions (Unit : mm)

1) Low on-resistance.

2) Built-in G-S Protection Diode.

3) Small and Surface Mount Package (SOP8).

Application Power switching, DC / DC converter.

Each lead has same dimensions

Absolute maximum ratings (Ta=25°C) Equivalent circuit ax .1 .7

Limits (8) (7) (6) (5) (8) (7) (6) (5)

Parameter Symbol Unit

Nchannel Pchannel

Drain-source voltage −30 VVDSS 0. 5± 0. Gate-source voltage −20 VVGSS Continuous ±5.0 ±4.5 AID

Drain current ∗2 ∗2

∗1 (1) (2) (3) (4) Pulsed ±20 ±18 AIDP Continuous Source current 1.6 −1.6 AIS (1) Tr1 (Nch) Source

(Body diode) ∗1 (2) Tr1 (Nch) Gate

Pulsed −18 AISP ∗1 ∗1

(3) Tr2 (Pch) Source

∗2 Total power dissipation WPD (4) Tr2 (Pch) Gate

(5) Tr2 (Pch) Drain

Channel temperature °CTch (1) (2) (3) (4)

(6) Tr2 (Pch) Drain

Storage temperature −55 to +150 °CTstg (7) Tr1 (Nch) Drain

∗1 ESD PROTECTION DIODE

∗1 Pw≤10µs, Duty cycle≤1% ∗2 BODY DIODE (8) Tr1 (Nch) Drain

∗2 MOUNTED ON A CERAMIC BOARD.

∗A protection diode is included between the gate and the source terminals to protect the diode against static electricity when the product is in use. Use the protection circuit when the fixed voltages are exceeded.

Thermal resistance (Ta=25°C)

Parameter Symbol Limits Unit

Channel to ambient 62.5 °C / WRth (ch-a) ∗MOUNTED ON A CERAMIC BOARD.

Rev.A 1/5
