ROHM PTZ3.6B datasheet

Summary

ROHM PTZ3.6B to PTZ13B Zener diode series in PMDS packages for voltage regulation from 3.6V to 13V. Provides electrical characteristics including Zener tolerance, operating resistance, leakage current, temperature coefficients, and 30kV ESD rating with taping and land pattern specs. For circuit designers selecting voltage reference diodes.

📄 Preview ‹ PAGE OF 5 ›

‹

›

Page 1 Text Content

查询PTZ3.9B供应商

PTZ3.6B

Diodes

Zener diode PTZ3.6B

Applications External dimensions (Unit : mm) Land size figure (Unit : mm) Voltage regulation 2.6±0.2

Features 　　　 0.1

1) Small power mold type. (PMDS) .5 .0

2) High ESD tolerance .2

Construction

Silicon epitaxial planar Structure .2 .3 ROHM : PMDS .0

JEDEC : SOD-106 .5 .0

Manufacture Date②

Taping dimensions (Unit : mm)

Absolute maximum ratings (Ta=25°C)

Param eter Sym bol Lim its Unit

ower diss ipation unction tem perature Tj torage tem perature Ts tg -55 to +150

Rev.B 1/4

Page Summary Contents For ROHM PTZ3.6B datasheet

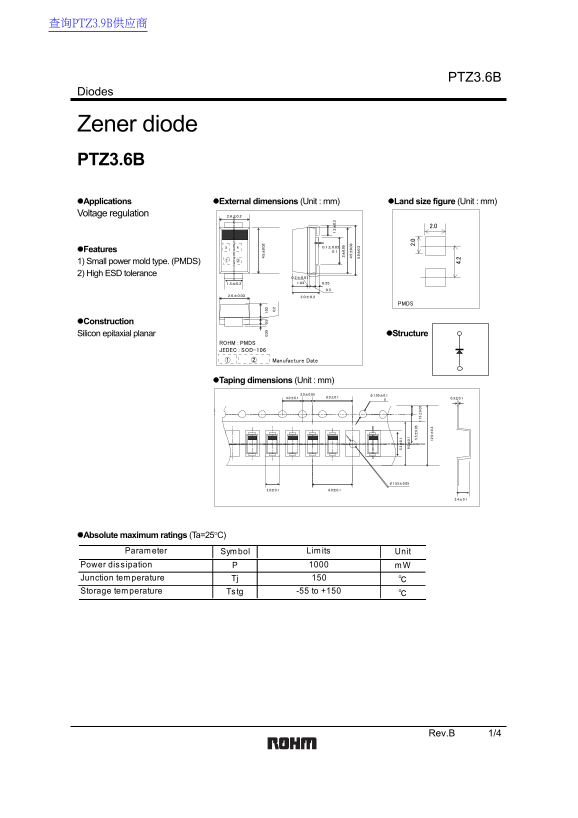

Page 1 查询PTZ3.9B供应商 PTZ3.6B Diodes Zener diode PTZ3.6B Applications External dimensions (Unit : mm) Land size figure (Unit : mm) Voltage regulation 2.6±0.2 Features 　　　 0.1 1) Small power mold type. (PMDS) ....

Page 2 PTZ3.6B Diodes Electrical characteristics (Ta=25°C) Symbol TYP. Reverse current : IR(μA) Temperature coefficiency : *γz(m V/℃)Zener voltage : Vz(V) ESD Break down voltage : ESD(k V)Operating resistanc...

Page 3 PTZ3.6B Diodes :Iz (m Electrical characteristic curves (Ta=25°C) .C IC IE :γ z( 6.86.2 IS IP IO :P d( 2420181615131211109.18.27.55.6 .C IC IE :γ z( IE IM :R th :P (W ZENER VOLTAGE:Vz(V) Vz-Iz CHARACTE...

Page 4 PTZ3.6B IC :Z z( :V z( :Iz (m Diodes <PTZ3.6B> Ta=75℃ Ta=150℃ Ta=125℃ Ta=125℃ f=1MHz f=1MHｚ Ta=-25℃ Ta=75℃ Ta=150℃ Ta=25℃ Ta=25℃ Ta=-25℃ 0.001 :IR (n IS (K :IR (n 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8...

Page 5 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject...
