The DTC614TU/TK are reliable digital transistors featuring built-in resistors and an SMT surface mount design. Optimized for signal muting circuits requiring high current handling, these components ensure efficient operation across diverse electronic projects. This manual provides detailed technical specifications, including electrical characteristics, maximum ratings, and comprehensive guidelines to assist engineers in designing robust and precise electronic circuits.

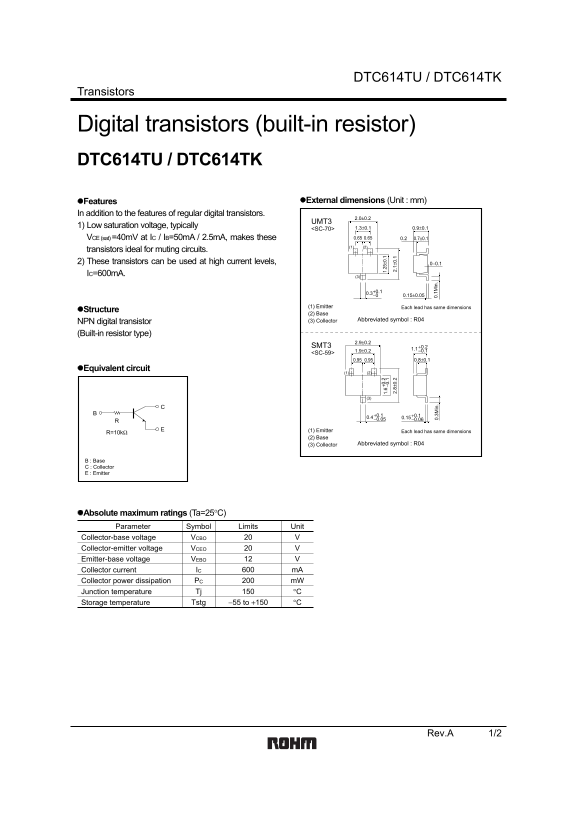

Page 1 Text Content
DTC614TU / DTC614TK
Transistors
Digital transistors (built-in resistor) DTC614TU / DTC614TK
Features External dimensions (Unit : mm)
In addition to the features of regular digital transistors.
1) Low saturation voltage, typically 1.3±0.1 0.9±0.1
<SC-70>
VCE (sat) =40m V at IC / IB=50m A / 2.5m A, makes these 0.65 0.7±0.10.20.65 (1) (2)
transistors ideal for muting circuits. 2) These transistors can be used at high current levels, 0−0.1 IC=600m A.
(1) Emitter Each lead has same dimensions
Structure
(2) Base
(3) Collector Abbreviated symbol : R04
NPN digital transistor (Built-in resistor type)
SMT3 +0.2
<SC-59>
Equivalent circuit
(1) Emitter Each lead has same dimensions
(2) Base 0. 3M in 0. 1M in
(3) Collector Abbreviated symbol : R04
B : Base C : Collector E : Emitter
Absolute maximum ratings (Ta=25°C) Parameter Symbol Limits Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter-base voltage VEBO Collector current IC m A
Collector power dissipation 200PC m W
Tj 150Junction temperature °C Storage temperature Tstg −55 to +150 °C
Rev.A 1/2
Page Summary Contents For ROHM DTC614TU datasheet specifications manual user guide
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 3 |
| File Size | 52.38 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What application makes these transistors ideal?
Their low saturation voltage and ability to handle high current make them perfect for muting circuits.
What are the absolute maximum operating limits of this transistor?
The collector current (IC) must not exceed 600 mA, and the junction temperature (Tj) limit is 150°C.
Can these transistors be used in critical life-safety equipment like medical devices?
No; for applications needing extremely high reliability (e.g., aerospace or medical instruments), you must consult a sales representative first.
