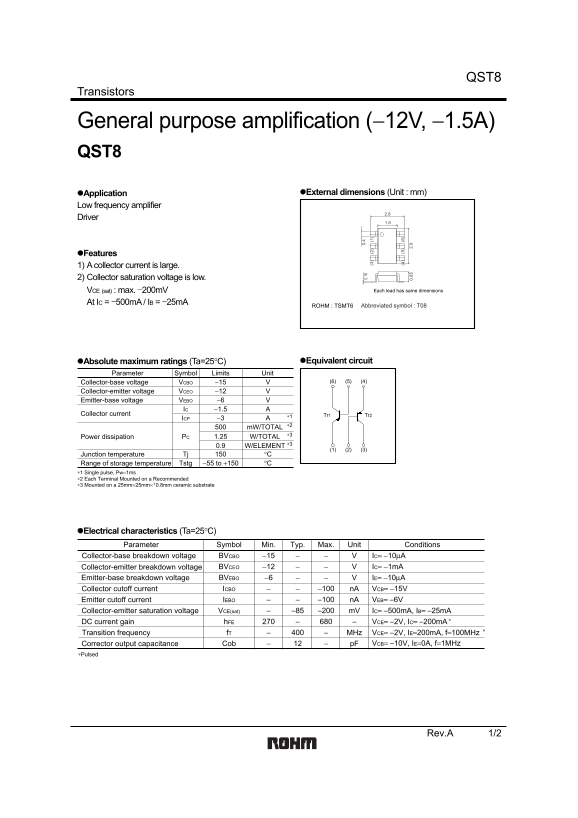

Page 1 Text Content
Transistors
General purpose amplification (−12V, −1.5A) QST8
Application External dimensions (Unit : mm)
Low frequency amplifier
Driver
Features 1) A collector current is large. 2) Collector saturation voltage is low.
VCE (sat) : max. −200m V Each lead has same dimensions
At IC = −500m A / IB = −25m A
ROHM : TSMT6 Abbreviated symbol : T08
Absolute maximum ratings (Ta=25°C) Equivalent circuit 0.
Parameter Symbol Limits Unit
Collector-base voltage VCBO −15 (5)(6) (4)
Collector-emitter voltage VCEO −12 Emitter-base voltage VEBO −6 (5
IC −1.5 0. 2.
Collector current Tr1 Tr2
ICP −3
m W/TOTAL
Power dissipation PC 1.25 W/TOTAL
0.9 W/ELEMENT
Junction temperature Tj °C Range of storage temperature Tstg −55 to +150 °C
∗1 Single pulse, Pw=1ms ∗2 Each Terminal Mounted on a Recommended ∗3 Mounted on a 25mm×25mm× 0.8mm ceramic substratet
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO −15 IC= −10µA
Collector-emitter breakdown voltage BVCEO −12 IC= −1m A Emitter-base breakdown voltage BVEBO −6 IE= −10µA
Collector cutoff current ICBO −100 n A VCB= −15V
Emitter cutoff current IEBO −100 n A VEB= −6V Collector-emitter saturation voltage VCE(sat) −85 −200 m V IC= −500m A, IB= −25m A DC current gain h FE VCE= −2V, IC= −200m A Transition frequency f T MHz VCE= −2V, IE=200m A, f=100MHz
Corrector output capacitance Cob p F VCB= −10V, IE=0A, f=1MHz
∗Pulsed
Rev.A 1/2
