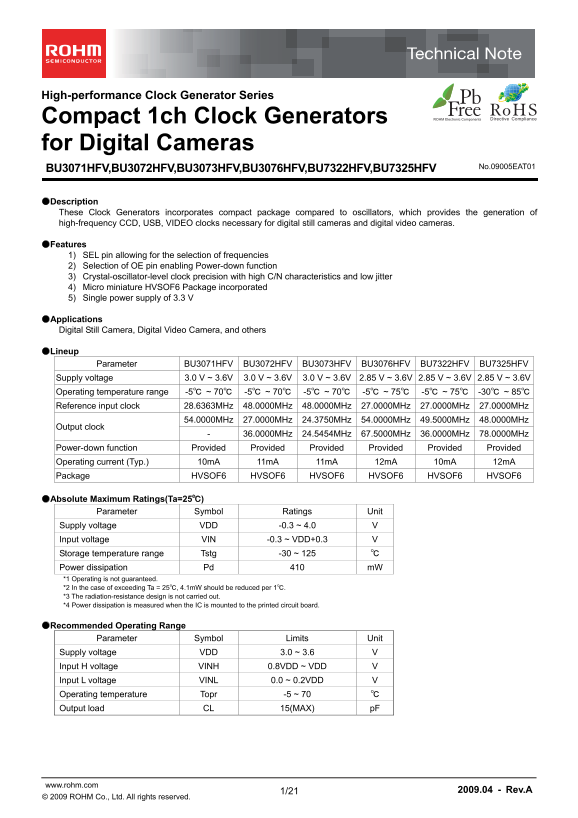

High-performance Clock Generator Series
Compact 1ch Clock Generators for Digital Cameras
BU3071HFV,BU3072HFV,BU3073HFV,BU3076HFV,BU7322HFV,BU7325HFV No.09005EAT01
●Description These Clock Generators incorporates compact package compared to oscillators, which provides the generation of high-frequency CCD, USB, VIDEO clocks necessary for digital still cameras and digital video cameras.
●Features 1) SEL pin allowing for the selection of frequencies 2) Selection of OE pin enabling Power-down function 3) Crystal-oscillator-level clock precision with high C/N characteristics and low jitter 4) Micro miniature HVSOF6 Package incorporated 5) Single power supply of 3.3 V
●Applications Digital Still Camera, Digital Video Camera, and others
●Lineup
Parameter BU3071HFV BU3072HFV BU3073HFV BU3076HFV BU7322HFV BU7325HFV
Supply voltage 3.0 V ~ 3.6V 3.0 V ~ 3.6V 3.0 V ~ 3.6V 2.85 V ~ 3.6V 2.85 V ~ 3.6V 2.85 V ~ 3.6V Operating temperature range -5℃ ~ 70℃ -5℃ ~ 70℃ -5℃ ~ 70℃ -5℃ ~ 75℃ -5℃ ~ 75℃ -30℃ ~ 85℃ Reference input clock 28.6363MHz 48.0000MHz 48.0000MHz 27.0000MHz 27.0000MHz 27.0000MHz
54.0000MHz 27.0000MHz 24.3750MHz 54.0000MHz 49.5000MHz 48.0000MHz
Output clock
- 36.0000MHz 24.5454MHz 67.5000MHz 36.0000MHz 78.0000MHz
Power-down function Provided Provided Provided Provided Provided Provided Operating current (Typ.) 10m A 11m A 11m A 12m A 10m A 12m A Package HVSOF6 HVSOF6 HVSOF6 HVSOF6 HVSOF6 HVSOF6
●Absolute Maximum Ratings(Ta=25℃)
Parameter Symbol Ratings Unit
Supply voltage VDD -0.3 ~ 4.0 V Input voltage VIN -0.3 ~ VDD+0.3 V Storage temperature range Tstg -30 ~ 125 ℃ Power dissipation Pd 410 m W *1 Operating is not guaranteed. *2 In the case of exceeding Ta = 25℃, 4.1m W should be reduced per 1℃. *3 The radiation-resistance design is not carried out. *4 Power dissipation is measured when the IC is mounted to the printed circuit board.
●Recommended Operating Range
Parameter Symbol Limits Unit
Supply voltage VDD 3.0 ~ 3.6 V Input H voltage VINH 0.8VDD ~ VDD V Input L voltage VINL 0.0 ~ 0.2VDD V Operating temperature Topr -5 ~ 70 ℃ Output load CL 15(MAX) p F
www.rohm.com 2009.04 - Rev.A
© 2009 ROHM Co., Ltd. All rights reserved.
