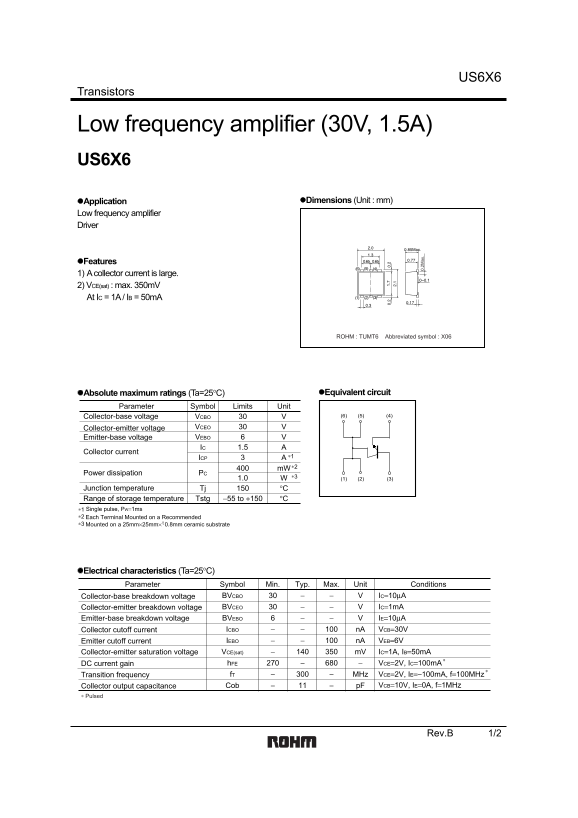

US6X6
Transistors
Low frequency amplifier (30V, 1.5A) US6X6
Application Dimensions (Unit : mm)
Low frequency amplifier Driver
Features 1) A collector current is large. 2) VCE(sat) : max. 350m V At IC = 1A / IB = 50m A
ROHM : TUMT6 Abbreviated symbol : X06
Absolute maximum ratings (Ta=25°C) Equivalent circuit
Parameter Symbol Limits Unit
Collector-base voltage VCBO (4)(5)(6)
0. 2M ax
Collector-emitter voltage VCEO Emitter-base voltage VEBO IC 1.5
Collector current
ICP ∗1
Power dissipation PC
Junction temperature Tj °C Range of storage temperature Tstg −55 to +150 °C ∗1 Single pulse, PW=1ms ∗2 Each Terminal Mounted on a Recommended ∗3 Mounted on a 25mm×25mm× 0.8mm ceramic substratet
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO IC=10µA Collector-emitter breakdown voltage BVCEO IC=1m A Emitter-base breakdown voltage BVEBO IE=10µA Collector cutoff current ICBO n A VCB=30V Emitter cutoff current IEBO n A VEB=6V Collector-emitter saturation voltage VCE(sat) m V IC=1A, IB=50m A DC current gain h FE VCE=2V, IC=100m A Transition frequency f T MHz VCE=2V, IE=−100m A, f=100MHz
Collector output capacitance Cob p F VCB=10V, IE=0A, f=1MHz
∗ Pulsed
Rev.B 1/2
