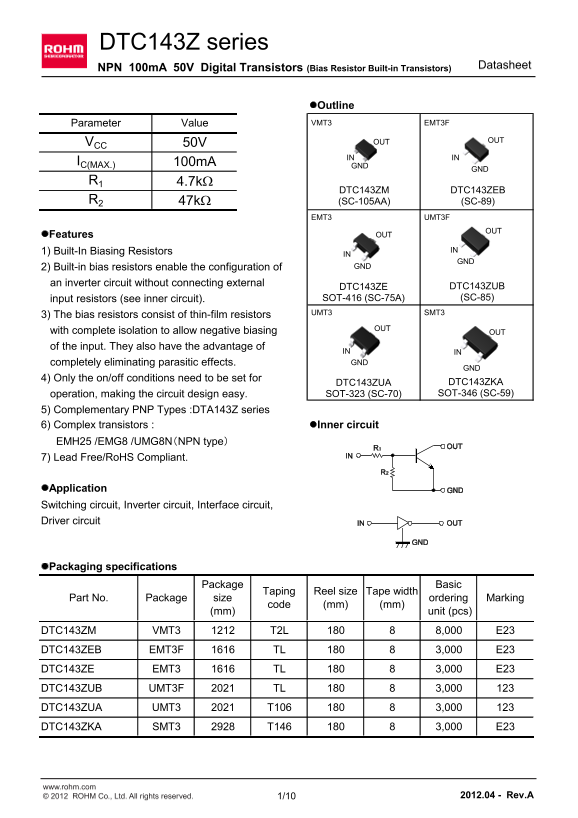

DTC143Z series

Datasheet

NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Value VMT3 EMT3F

VCC OUT OUT

IN IN

IC(MAX.) 100m A

DTC143ZM DTC143ZEB

R2 47k W (SC-105AA) (SC-89)

EMT3 UMT3F

l Features OUT

1) Built-In Biasing Resistors IN

2) Built-in bias resistors enable the configuration of GND

an inverter circuit without connecting external

DTC143ZE DTC143ZUB input resistors (see inner circuit). SOT-416 (SC-75A) (SC-85)

UMT3 SMT3

3) The bias resistors consist of thin-film resistors

with complete isolation to allow negative biasing OUT of the input. They also have the advantage of

IN IN completely eliminating parasitic effects. GND

4) Only the on/off conditions need to be set for

DTC143ZUA DTC143ZKA operation, making the circuit design easy. SOT-323 (SC-70) SOT-346 (SC-59)

5) Complementary PNP Types :DTA143Z series

6) Complex transistors : l Inner circuit

EMH25 /EMG8 /UMG8N(NPN type) 7) Lead Free/Ro HS Compliant.

l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTC143ZM VMT3 T2L 8,000 E23 DTC143ZEB EMT3F TL 3,000 E23

EMT3 TL 8DTC143ZE 3,000 E23

DTC143ZUB UMT3F TL 3,000 DTC143ZUA UMT3 T106 3,000 DTC143ZKA SMT3 T146 3,000 E23

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/10 2012.04 - Rev.A
