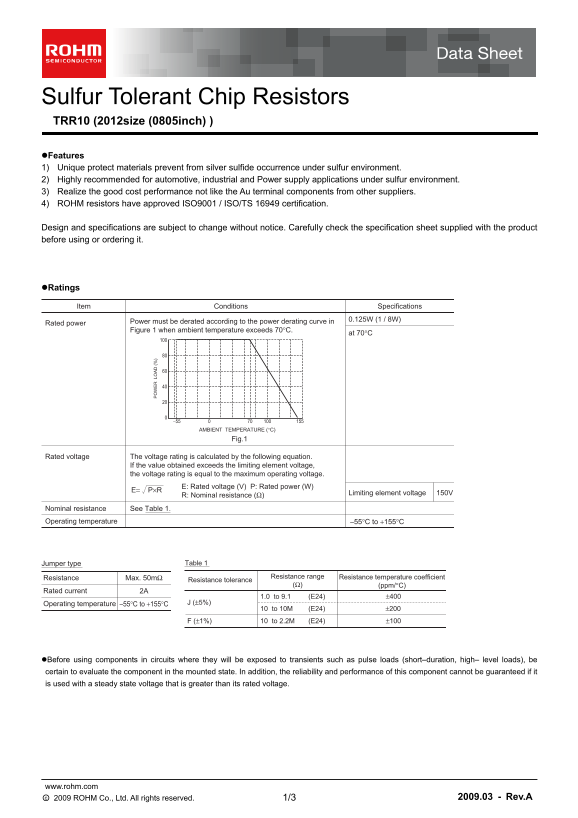

Sulfur Tolerant Chip Resistors TRR10 (2012size (0805inch) ) Features 1) Unique protect materials prevent from silver sulfide occurrence under sulfur environment. 2) Highly recommended for automotive, industrial and Power supply applications under sulfur environment. 3) Realize the good cost performance not like the Au terminal components from other suppliers. 4) ROHM resistors have approved ISO9001 / ISO/TS 16949 certification.
Design and specifications are subject to change without notice. Carefully check the specification sheet supplied with the product before using or ordering it.
Ratings
Item Conditions Specifications
Rated power Power must be derated according to the power derating curve in Figure 1 when ambient temperature exceeds 70°C.
at 70°C
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage The voltage rating is calculated by the following equation. If the value obtained exceeds the limiting element voltage, the voltage rating is equal to the maximum operating voltage.
E: Rated voltage (V) P: Rated power (W)
Limiting element voltage 150V
R: Nominal resistance (Ω)
Nominal resistance See Table 1. Operating temperature −55°C to +155°C
Jumper type Table 1
Resistance Max. 50mΩ Resistance range Resistance temperature coefficient
Resistance tolerance
(Ω) (ppm/°C)
Rated current 2A
(E24) ±4001.0 to 9.1
Operating temperature −55°C to +155°C J (±5%)
(E24) ±20010 to 10M F (±1%) 10 to 2.2M (E24) ±100
Before using components in circuits where they will be exposed to transients such as pulse loads (short–duration, high– level loads), be certain to evaluate the component in the mounted state. In addition, the reliability and performance of this component cannot be guaranteed if it is used with a steady state voltage that is greater than its rated voltage.
