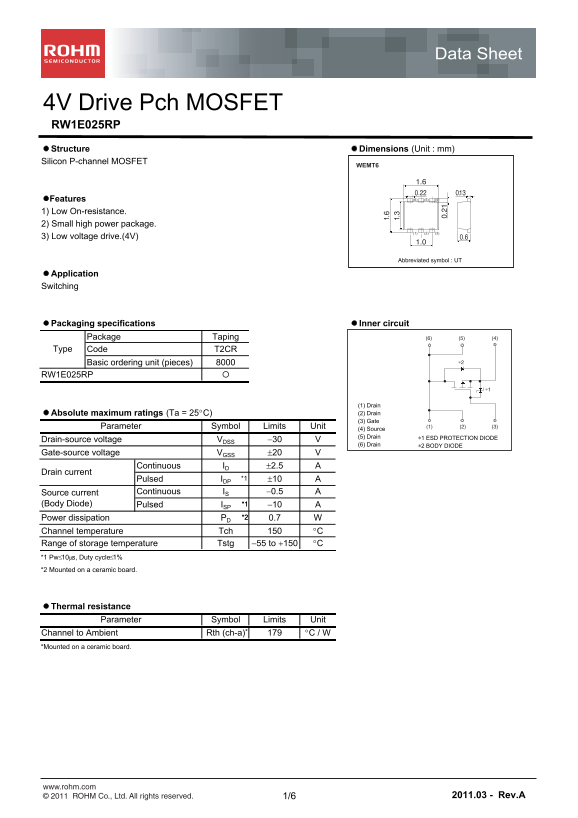

ROHM RW1E025RP User Guide and Manual - Page 1

›

Page 1 Text Content

Data Sheet

4V Drive Pch MOSFET RW1E025RP Structure Dimensions (Unit : mm) Silicon P-channel MOSFET

WEMT6

Features (6) (5) (4)

1) Low On-resistance. 2) Small high power package.

3) Low voltage drive.(4V)

Abbreviated symbol : UT

Application Switching

Packaging specifications Inner circuit

Package Taping (6) (5) (4)

Type Code T2CR

Basic ordering unit (pieces) ∗2

RW1E025RP

(1) Drain Absolute maximum ratings (Ta = 25C) (2) Drain (3) Gate

Parameter Symbol Limits Unit (1) (2) (3)

(4) Source (5) Drain ∗1 ESD PROTECTION DIODE

Drain-source voltage VDSS 30

(6) Drain ∗2 BODY DIODE

Gate-source voltage VGSS 20 Continuous ID 2.5

Drain current

Pulsed IDP *1 10 Source current Continuous IS 0.5 (Body Diode) Pulsed ISP *1 10 Power dissipation PD *2 0.7

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 Mounted on a ceramic board.

Thermal resistance

Parameter Symbol Limits Unit

Channel to Ambient Rth (ch-a) C / W *Mounted on a ceramic board.

www.rohm.com

Page Summary Contents For ROHM RW1E025RP User Guide and Manual

Page 1 Data Sheet 4V Drive Pch MOSFET RW1E025RP Structure Dimensions (Unit : mm) Silicon P-channel MOSFET WEMT6 Features (6) (5) (4) 1) Low On-resistance. 2) Small high power package. 3) Low voltage drive...

Page 2 Data Sheet RW1E025RP Electrical characteristics (Ta = 25C) Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS 10 A VGS=20V, VDS=0V Drain-source breakdown voltage V(BR)DSS 3...

Page 3 Data Sheet RW1E025RP Electrical characteristic curves (Ta=25C) ta ti ra in -S rc -S ta te is ta ta ti ra in -S rc -S ta te is ta ra in rr Fig.1 Typical Output Characteristics (Ⅰ) Fig.2 Typical Outpu...

Page 4 Data Sheet RW1E025RP it in im rc rr rw rd ra fe it ta Fig.7 Forward Transfer Admittance vs. Drain Current Fig.8 Typical Transfer Characteristics VDS=-10V VDS=-10V pulsed pulsed Ta=125°C Ta=75°C Ta=25°...

Page 5 Data Sheet RW1E025RP Fig.13 Typical Capacitance vs. Drain-Source Voltage Ta=25°C f=1MHz VGS=0V Crss Coss Drain-Source Voltage : -VDS [V] www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 5/6 201...

Page 6 Data Sheet RW1E025RP Measurement circuits Pulse Width VGS ID VGS VDS 10% trtd(on) tftd(off) ton toff Fig.1-1 Switching Time Measurement Circuit Fig.1-2　Switching Waveforms VDS Qg IG(Const.) D.U.T. Qg...

Page 7 Notice Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/conta...
