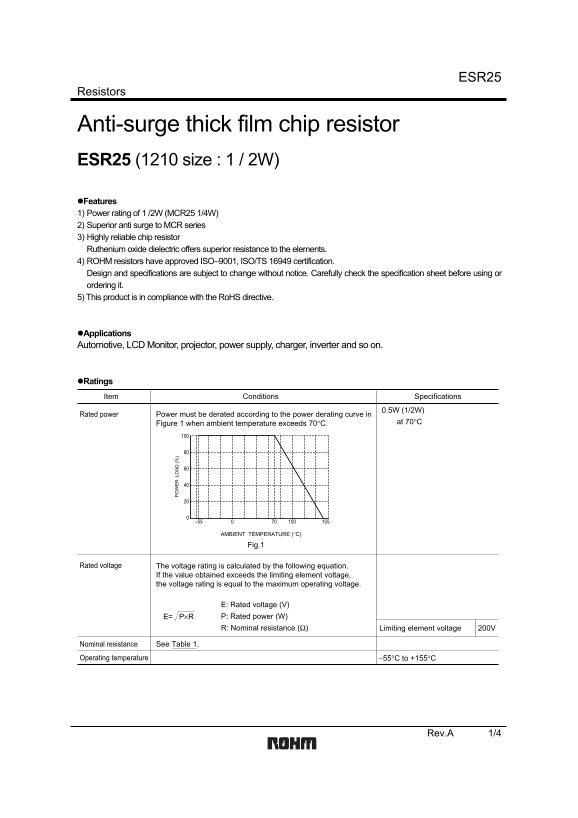

ESR25
Resistors
Anti-surge thick film chip resistor ESR25 (1210 size : 1 / 2W) Features 1) Power rating of 1 /2W (MCR25 1/4W) 2) Superior anti surge to MCR series 3) Highly reliable chip resistor Ruthenium oxide dielectric offers superior resistance to the elements. 4) ROHM resistors have approved ISO–9001, ISO/TS 16949 certification. Design and specifications are subject to change without notice. Carefully check the specification sheet before using or ordering it. 5) This product is in compliance with the Ro HS directive.
Applications Automotive, LCD Monitor, projector, power supply, charger, inverter and so on.
Ratings Item Conditions Specifications
Rated power Power must be derated according to the power derating curve in
Figure 1 when ambient temperature exceeds 70°C. at 70°C
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage The voltage rating is calculated by the following equation.
If the value obtained exceeds the limiting element voltage, the voltage rating is equal to the maximum operating voltage.
E: Rated voltage (V) E= P×R P: Rated power (W) R: Nominal resistance (Ω) Limiting element voltage 200V
Nominal resistance See Table 1.
Operating temperature −55°C to +155°C
Rev.A 1/4
