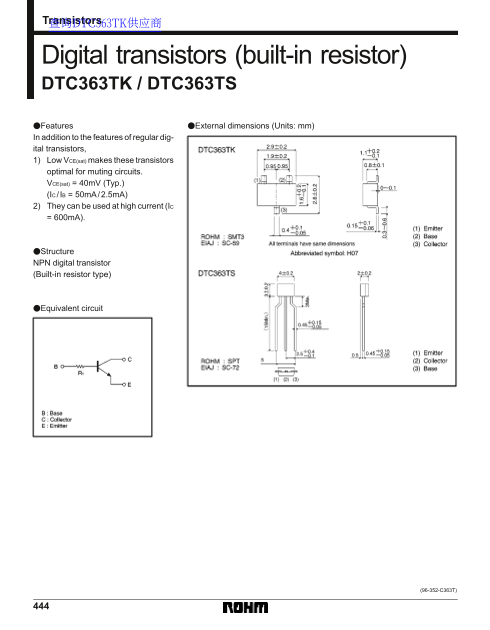

Digital transistors (built-in resistor) DTC363TK DTC363TS Features External dimensions (Units: mm) In addition to the features of regular dig- ital transistors, 1) Low VCE(sat) makes these transistors optimal for muting circuits. VCE(sat) = 40m V (Typ.) (IC IB = 50m A/2.5m A) 2) They can be used at high current (IC = 600m A).
Structure NPN digital transistor (Built-in resistor type)
Equivalent circuit
