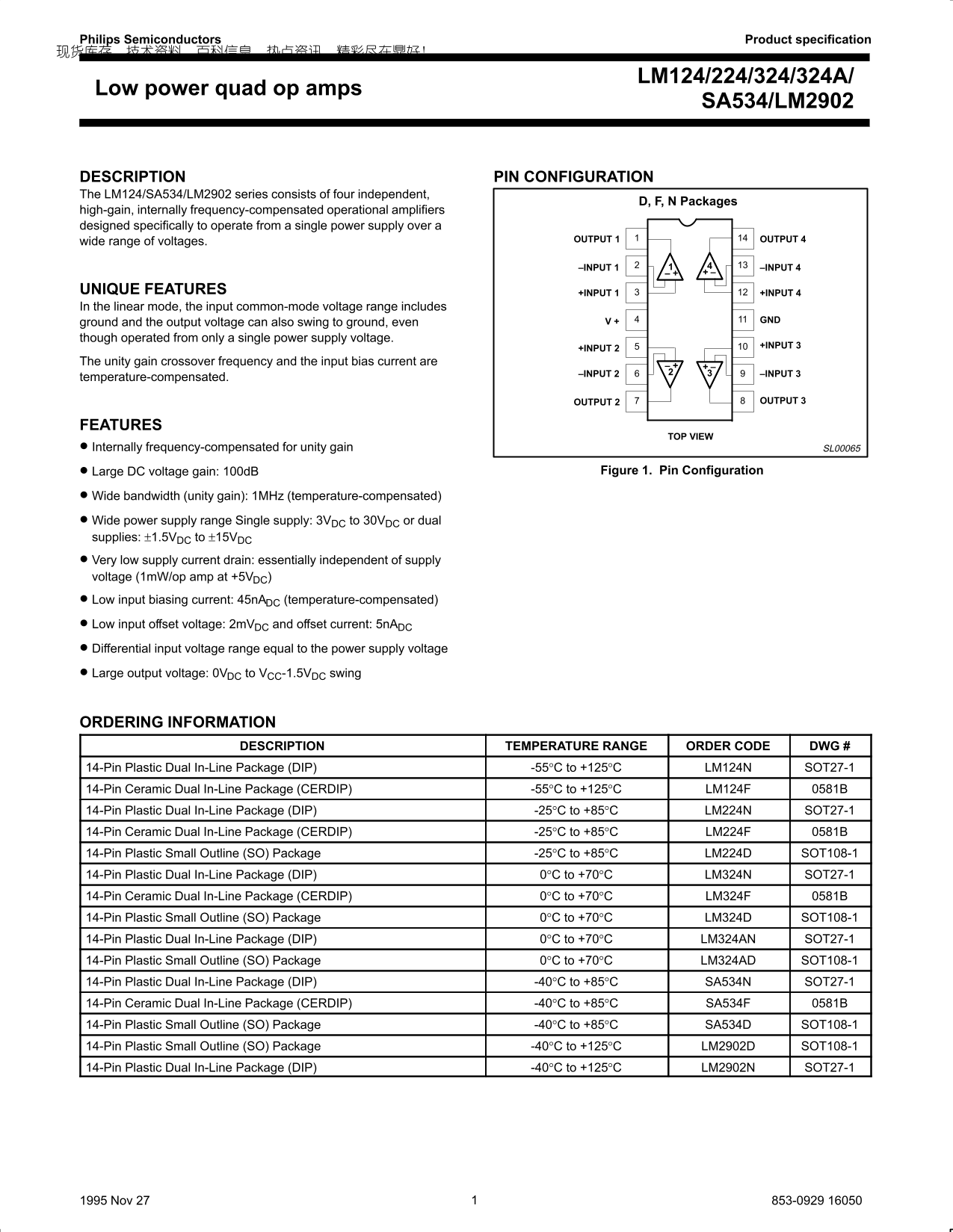

Page 1 Text Content
Philips Semiconductors Product specification 现货库存、技术资料、百科信息、热点资讯，精彩尽在鼎好!
LM124/224/324/324A/ SA534/LM2902Low power quad op amps
DESCRIPTION PIN CONFIGURATION The LM124/SA534/LM2902 series consists of four independent,
D, F, N Packages
high-gain, internally frequency-compensated operational amplifiers designed specifically to operate from a single power supply over a
wide range of voltages. OUTPUT 1 OUTPUT 4
–INPUT 1 –INPUT 4
UNIQUE FEATURES +INPUT 1 +INPUT 4 In the linear mode, the input common-mode voltage range includes
ground and the output voltage can also swing to ground, even V + GND
though operated from only a single power supply voltage.
+INPUT 2 +INPUT 3
The unity gain crossover frequency and the input bias current are
–INPUT 2 –INPUT 3
temperature-compensated.
OUTPUT 2 OUTPUT 3
FEATURES
TOP VIEW
Internally frequency-compensated for unity gain SL00065
Large DC voltage gain: 100d B Figure 1. Pin Configuration
Wide bandwidth (unity gain): 1MHz (temperature-compensated) Wide power supply range Single supply: 3VDC to 30VDC or dual supplies: ±1.5VDC to ±15VDC Very low supply current drain: essentially independent of supply voltage (1m W/op amp at +5VDC) Low input biasing current: 45n ADC (temperature-compensated) Low input offset voltage: 2m VDC and offset current: 5n ADC Differential input voltage range equal to the power supply voltage Large output voltage: 0VDC to VCC-1.5VDC swing
ORDERING INFORMATION
DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #
14-Pin Plastic Dual In-Line Package (DIP) -55°C to +125°C LM124N SOT27-1 14-Pin Ceramic Dual In-Line Package (CERDIP) -55°C to +125°C LM124F 0581B 14-Pin Plastic Dual In-Line Package (DIP) -25°C to +85°C LM224N SOT27-1 14-Pin Ceramic Dual In-Line Package (CERDIP) -25°C to +85°C LM224F 0581B 14-Pin Plastic Small Outline (SO) Package -25°C to +85°C LM224D SOT108-1 14-Pin Plastic Dual In-Line Package (DIP) 0°C to +70°C LM324N SOT27-1 14-Pin Ceramic Dual In-Line Package (CERDIP) 0°C to +70°C LM324F 0581B 14-Pin Plastic Small Outline (SO) Package 0°C to +70°C LM324D SOT108-1 14-Pin Plastic Dual In-Line Package (DIP) 0°C to +70°C LM324AN SOT27-1 14-Pin Plastic Small Outline (SO) Package 0°C to +70°C LM324AD SOT108-1 14-Pin Plastic Dual In-Line Package (DIP) -40°C to +85°C SA534N SOT27-1 14-Pin Ceramic Dual In-Line Package (CERDIP) -40°C to +85°C SA534F 0581B 14-Pin Plastic Small Outline (SO) Package -40°C to +85°C SA534D SOT108-1 14-Pin Plastic Small Outline (SO) Package -40°C to +125°C LM2902D SOT108-1 14-Pin Plastic Dual In-Line Package (DIP) -40°C to +125°C LM2902N SOT27-1
11995 Nov 27 853-0929 16050
Page Summary Contents For Philips Semiconductors LM124 224 324 324A SA534 LM2902 Data Handbook
Manual Details
| Brand | Philips |
|---|---|
| Pages | 7 |
| File Size | 155.71 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the wide-range voltage supply capability of these op-amps?
They can operate from a single power supply range of 3V to 30V, or use dual supplies from ±1.5V to ±15V DC.
How low are the input biasing currents?
The input bias current is very low at 45nA (temperature-compensated).
Are there different operating temperatures for these models?
Yes, they come in various packages with different temperature ranges, including -55°C to +125°C up to the SA534.
What is the typical differential input voltage range at a given supply voltage?
The differential input voltage can equal the power supply voltage (Vcc).
