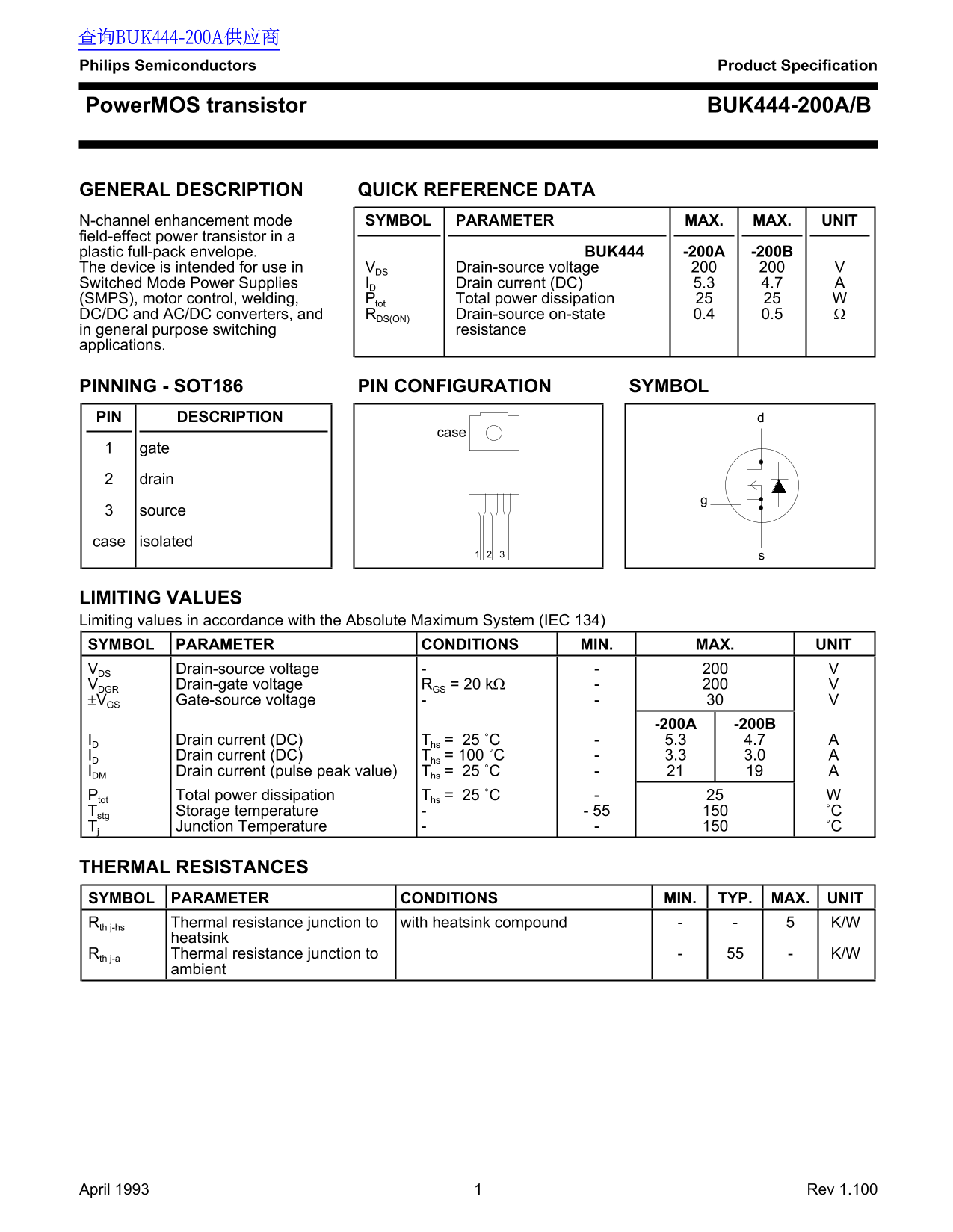

查询BUK444-200A供应商 Philips Semiconductors Product Specification

Power MOS transistor BUK444-200A/B

GENERAL DESCRIPTION QUICK REFERENCE DATA N-channel enhancement mode SYMBOL PARAMETER MAX. MAX. UNIT field-effect power transistor in a plastic full-pack envelope. BUK444 -200A -200B

The device is intended for use in VDS Drain-source voltage

Switched Mode Power Supplies ID Drain current (DC) 5.3 4.7 (SMPS), motor control, welding, Ptot Total power dissipation DC/DC and AC/DC converters, and RDS(ON) Drain-source on-state 0.4 0.5 in general purpose switching resistance applications.

PINNING - SOT186 PIN CONFIGURATION SYMBOL PIN DESCRIPTION

gate drain

source case isolated

LIMITING VALUES Limiting values in accordance with the Absolute Maximum System (IEC 134) SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS Drain-source voltage VDGR Drain-gate voltage RGS = 20 kΩ ±VGS Gate-source voltage

ID Drain current (DC) Ths = 25 ˚C 5.3 4.7 ID Drain current (DC) Ths = 100 ˚C 3.3 3.0 IDM Drain current (pulse peak value) Ths = 25 ˚C Ptot Total power dissipation Ths = 25 ˚C Tstg Storage temperature - 55 ˚C Tj Junction Temperature ˚C

THERMAL RESISTANCES SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Rth j-hs Thermal resistance junction to with heatsink compound K/W heatsink

Rth j-a Thermal resistance junction to K/W

ambient

April 1993 Rev 1.100
